Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of electric vacuum lifter for sheet metal in China. We warmly welcome you to buy discount electric vacuum lifter for sheet metal for sale here from our factory. Quality products and reasonable price are available.

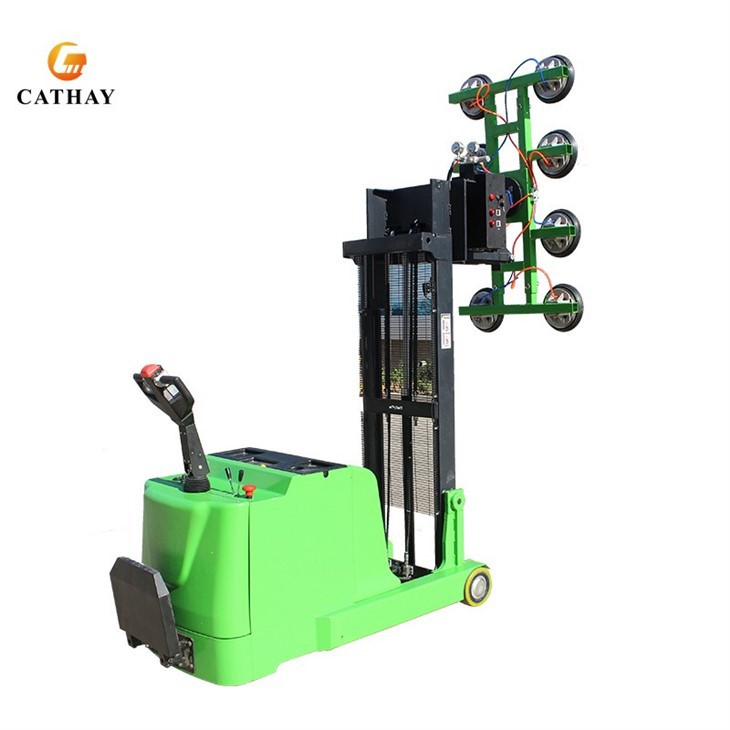

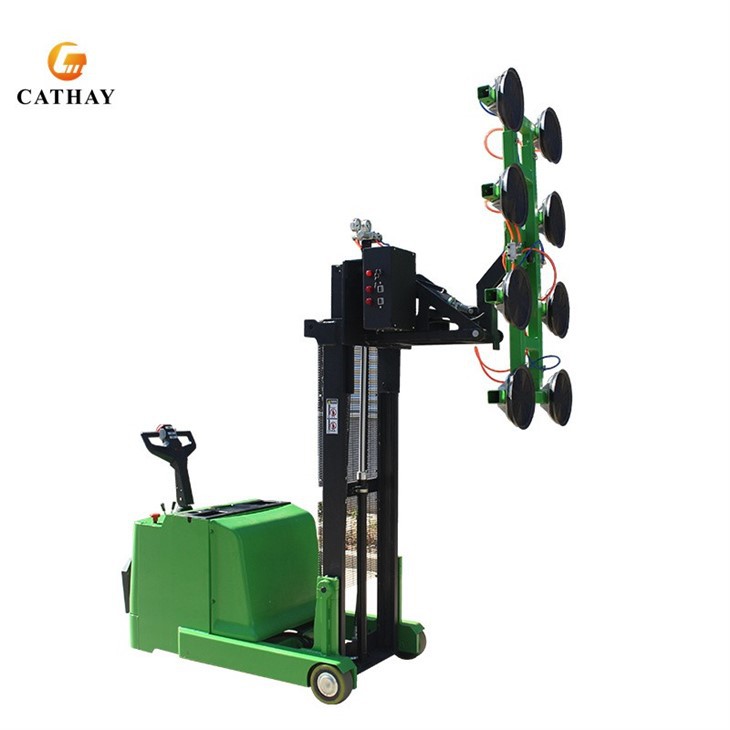

Electric Vacuum Lifter For Sheet Metal
CATHAYLIFT electric vacuum lifter is a specialized tool designed for handling, loading, and unloading various sheet materials, including metal and glass. With a lifting capacity ranging from 400kg to 800kg, this equipment uses powerful suction cups to securely lift and transport materials. Its advanced vacuum technology ensures a firm grip, enhancing safety and efficiency in operations. Ideal for industrial environments, the CATHAYLIFT vacuum lifter streamlines material handling processes, reducing manual labor and minimizing the risk of damage. This robust and reliable solution is essential for improving productivity in sheet metal and glass handling applications.
|
Model |
XC-H400(4) |
XC-H400(6) |
XC-H600(6) |
XC-H600(8) |
|
|
Rated Load Capacity |
400kgs |
600kgs |
|||
|
Safe Load Capacity |
200kgs |
300kgs |
|||
|
Lifting Height |
1500mm |
1500mm |
|||
|
QTY of Suction Caps |
4pcs |
6pcs |
6pcs |
8pcs |
|
|
Cap Diameter |
Ø300mm |
Ø300mm |
|||
|
Plate Size (customized) |
1220x1830mm |
2440x1830mm |
|||
|
Load Center |
650mm |
950mm |
|||
|
Drive Motor |
24V/500W |
24V/700W |
|||
|
Hydraulic Motor |
24V/2000W |
24V/2000W |
|||
|
Battery |
2x12V/70Ah |
2x12V/100Ah |
|||
|
Charger |
24V/10A |
24V/15A |
|||
|
Model |
XC-H800(8) |
XC-H800(10) |
XC-H800(8) |
XC-H800(10) |
|
|
Rated Load Capacity |
800kgs |
800kgs |
|||
|
Safe Load Capacity |
400kgs |
400kgs |
|||
|
Lifting Height |
1500mm |
2500mm |
|||
|
QTY of Suction Caps |
8pcs |
10pcs |
8pcs |
10pcs |
|
|
Cap Diameter |
Ø300mm |
Ø300mm |
|||
|
Plate Size (customized) |
3660x2440mm |
3660x2440mm |
|||
|
Load Center |
1250mm |
1250mm |
|||
|
Drive Motor |
24V/900W |
24V/900W |
|||
|
Hydraulic Motor |
24V/2000W |
24V/2000W |
|||
|
Battery |
2x12V/160Ah |
2x12V/160Ah |
|||
|
Charger |
24V/20A |
24V/20A |
|||

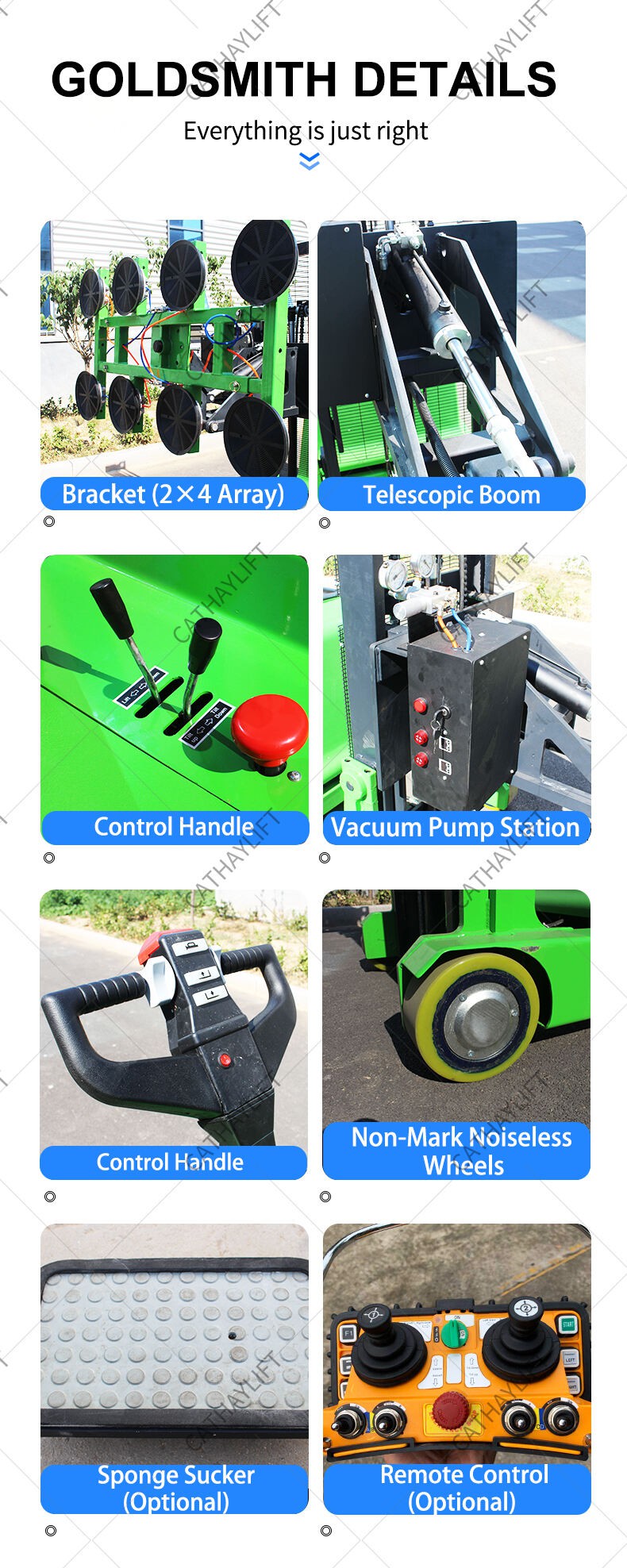

Products Details
Why choose our vacuum lifter?
Versatility: The lift can handle a wide range of materials, from sheet metal to glass, making it ideal for diverse applications in various industries.
Obstacle-Free Operation: Without front forks, the lift easily navigates around obstacles like front pallets and tripods, simplifying the transportation process.
Enhanced Safety: Equipped with its own power supply, the lift adheres to European safety standards, featuring automatic pressure control and a dual pipe system for continuous safety monitoring, reducing the risk of accidents.
Environmentally Friendly: Designed with environmental considerations, the lift is efficient and user-friendly, contributing to sustainable and eco-friendly operations.
Multifunctionality: The lift offers numerous functionalities, including electric front and rear travel control, electro-hydraulic lifting, optional electric side shifting, and 360-degree plane rotation, making it a versatile tool for various tasks.
