Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of line type vacuum glass suction caps in China. We warmly welcome you to buy discount line type vacuum glass suction caps for sale here from our factory. Quality products and reasonable price are available.

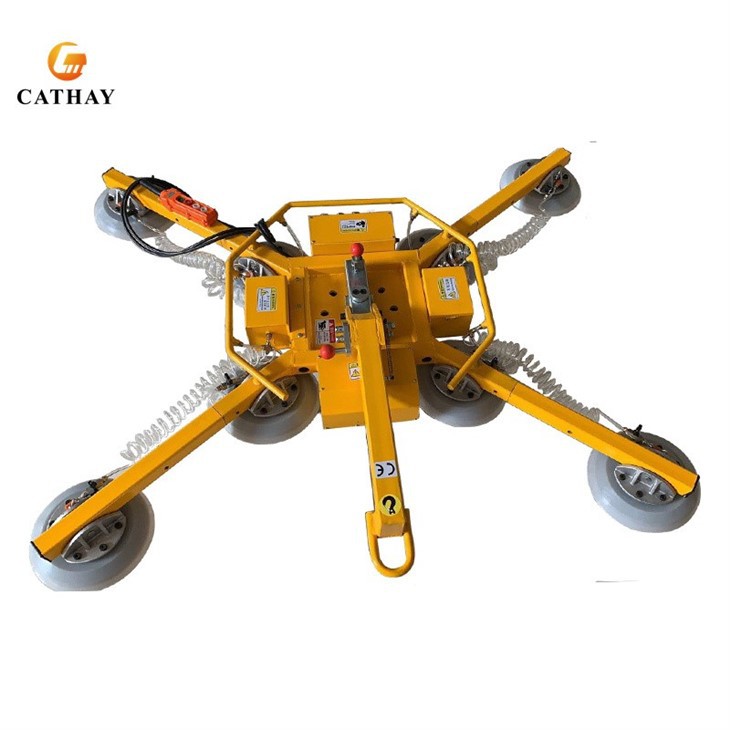

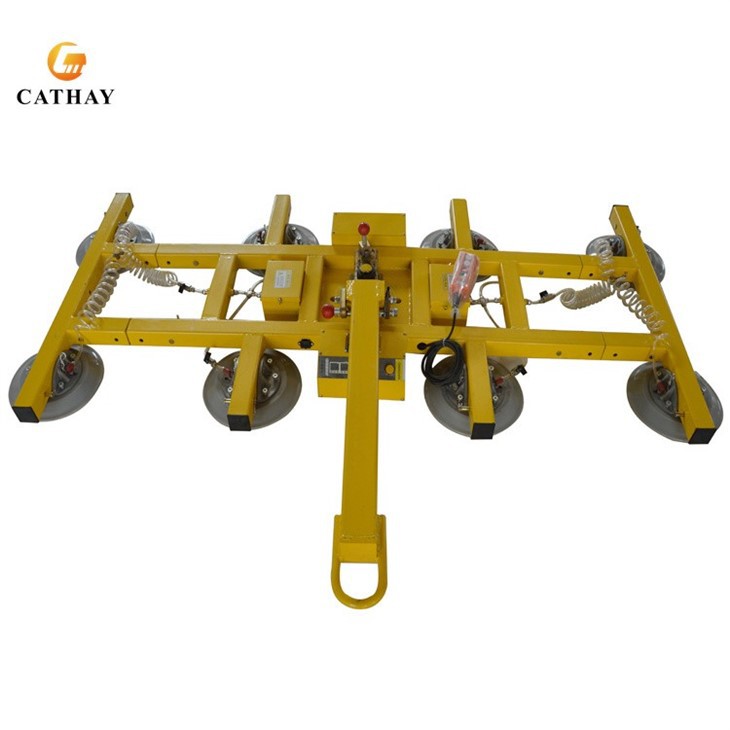

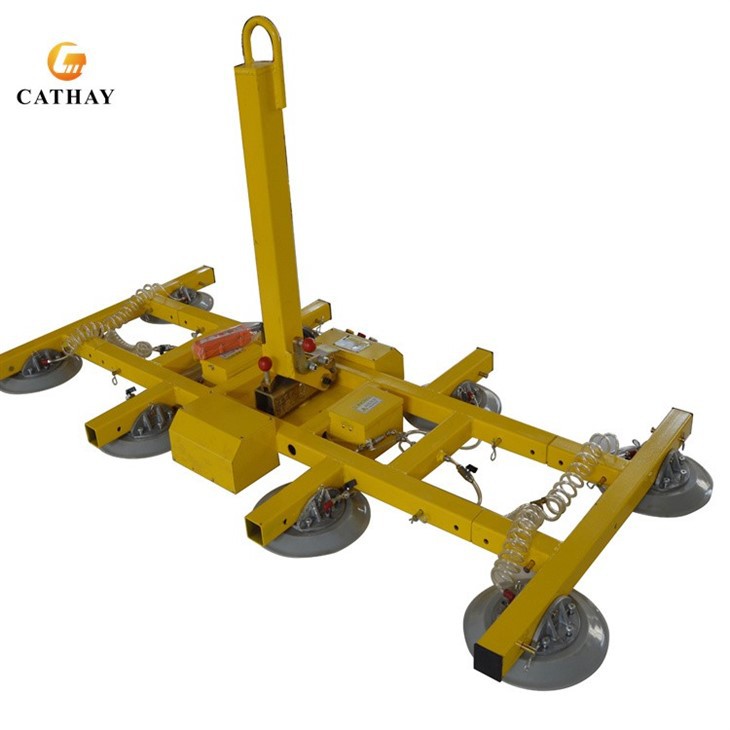

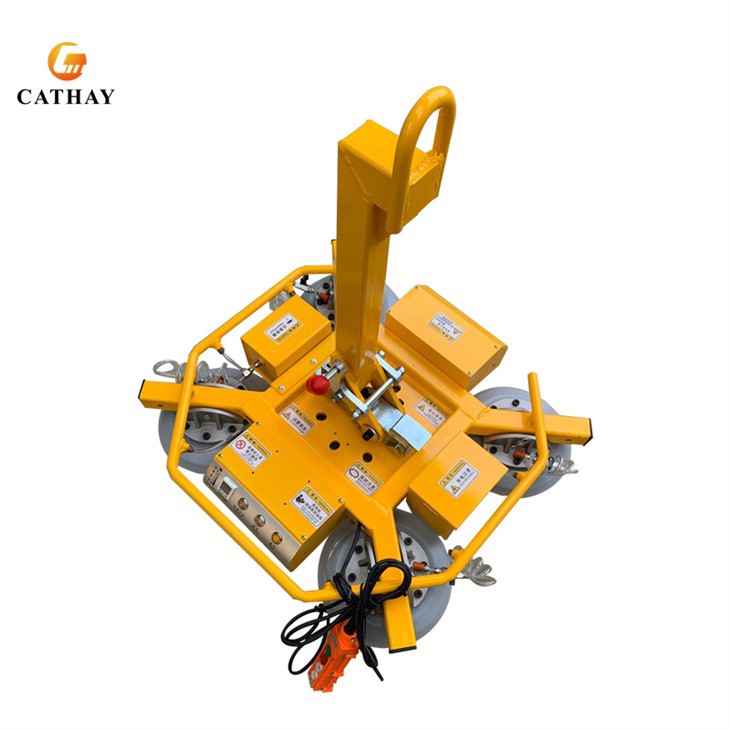

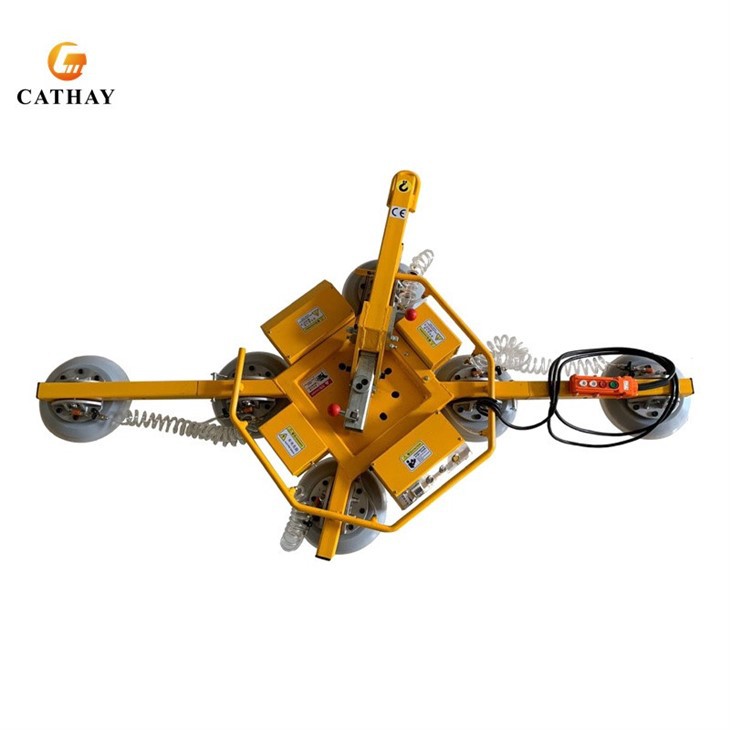

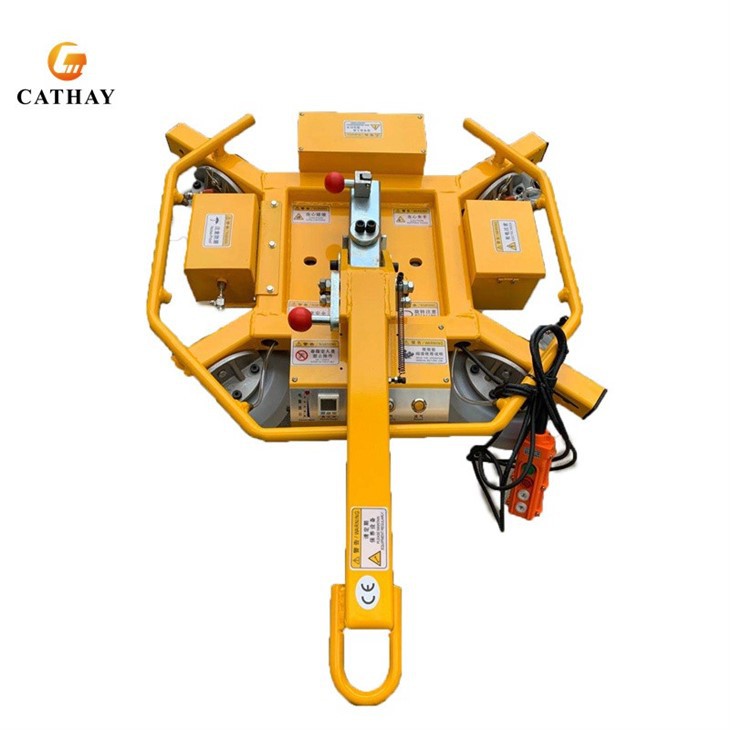

A masterful combination of design and functionality, CATHAYLIFT Line Type Vacuum Glass Suction Caps have redefined manual handling in the glass assembly industry. Versatile, powerful, and unwavering in delivering safety, the CATHAYLIFT Line Type Vacuum Glass Suction Caps stand as an essential tool. From sheer façades to intricate interiors, rely on this cutting-edge lifter to transform the most challenging projects into showcases of installation excellence.
|
Model |
XC-S400 |
XC-S600 |
XC-S800 |
XC-S1000 |
XC-S1200 |
|
|
Lifting Capacity |
kg |
400 |
600 |
800 |
1000 |
1200 |
|
Cup Qty |
/ |
4 |
6 |
8 |
10 |
12 |
|
Single Cup Diameter |
mm |
300 |
300 |
300 |
300 |
300 |
|
Single Cup Capacity |
kg |
100 |
100 |
100 |
100 |
100 |
|
Rotation |
/ |
360°manual rotate |
||||
|
Tilting |
/ |
90° manual |
||||
|
Voltage |
V |
DC12 |
||||
|
Charger |
V |
AC220/110 custom |
||||
|
Weight |
kg |
70 |
90 |
100 |
120 |
120 |
|
Sucker Frame Size |
mm |
850*750*300 |
1800*900*300 |
1760*1460*300 |
1900*1600*300 |
1900*1600*300 |
|
Extension Bar Length |
mm |
500 |
||||
|
Control System |
/ |
Integrated Control Cabinet and Wired Remote Control |
||||
|
Overall Size |
mm |
1230*910*390mm, packed by wooden box |
||||
|
Gross Weight |
kg |
97 |
110 |
123 |
150 |
163 |
Product Details
Advantages:
● Lightweight and User-Friendly Design:
Our suction caps are engineered to be lightweight, ensuring ease of operation and minimizing user fatigue. The ergonomic design allows for intuitive handling, making it accessible for both seasoned professionals and newcomers alike. With its straightforward operation, you can achieve optimal results with minimal effort.
● Autonomous Power Source :
Powered by a robust 12V battery, the CATHAYLIFT suction caps eliminate the need for an external power supply. This feature ensures complete portability and flexibility, allowing you to work efficiently in various environments, including remote and outdoor locations.
● Versatile and Adjustable:
The suction caps are equipped with extension rods that can be tailored to fit different glass sizes, providing versatility for diverse applications. Additionally, the device can be manually rotated 90° and 360°, featuring a labor-saving mechanism that enhances maneuverability and precision during installation.
● Advanced Digital Displays:
To keep you informed at all times, our suction caps come with digital displays for both air pressure and battery power. These real-time readings enable you to monitor the device's status, ensuring consistent performance and timely maintenance.
● Enhanced Safety Features:
Safety is paramount with the CATHAYLIFT Line Type Vacuum Glass Suction Caps. The fully enclosed shell protection makes it ideal for outdoor curtain wall installations, safeguarding the internal components against environmental elements. The device is also equipped with insufficient vacuum and power-off pressure maintenance systems, complete with alarm devices, providing immediate alerts and prolonging emergency response time during unexpected power failures.
● Ultra-Large Vacuum Accumulator:
The ultra-large vacuum accumulator ensures that even in the event of accidental power loss, there is sufficient vacuum pressure to handle the glass safely. This feature significantly extends the emergency treatment time, enhancing overall safety and reliability.
Real Order
