Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of electric moving vacuum glass lifter in China. We warmly welcome you to buy discount electric moving vacuum glass lifter for sale here from our factory. Quality products and reasonable price are available.

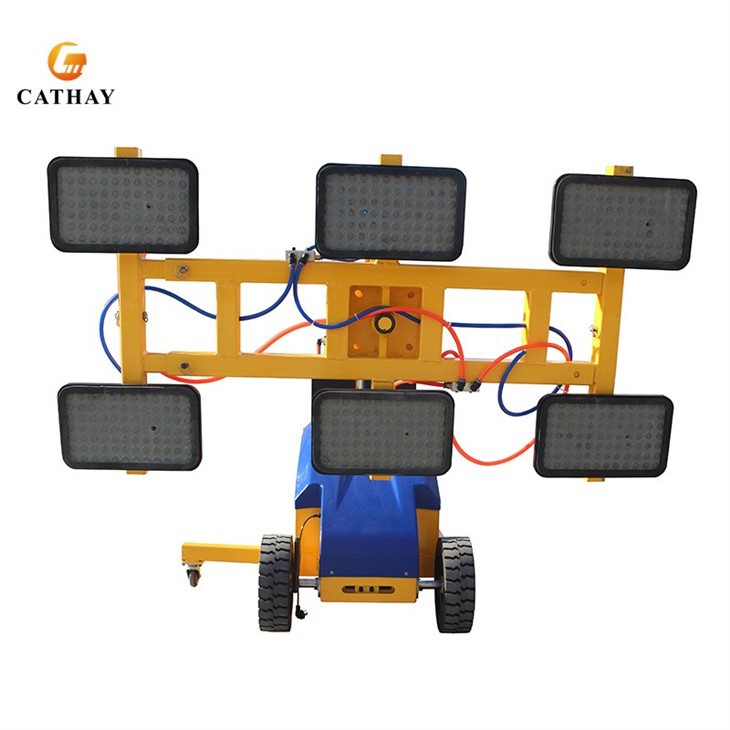

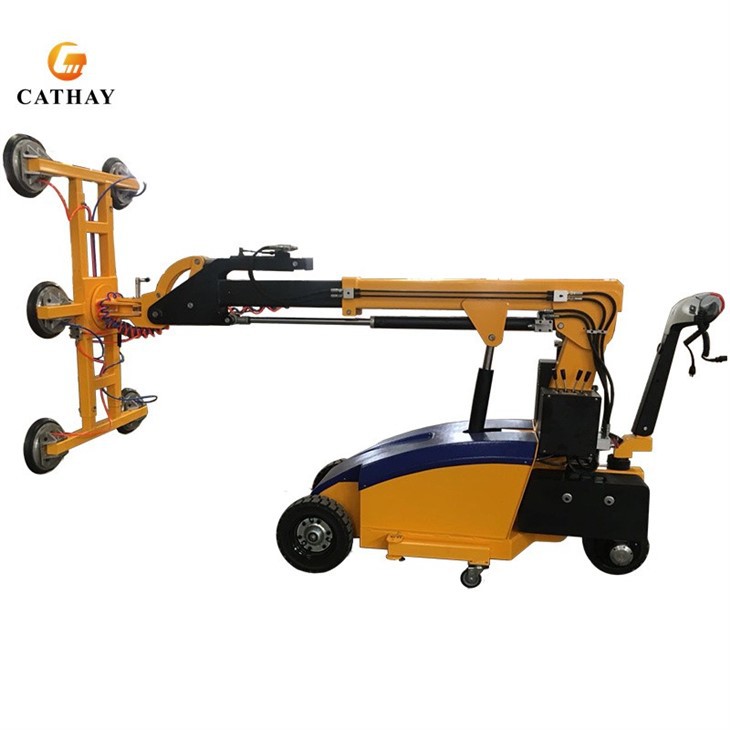

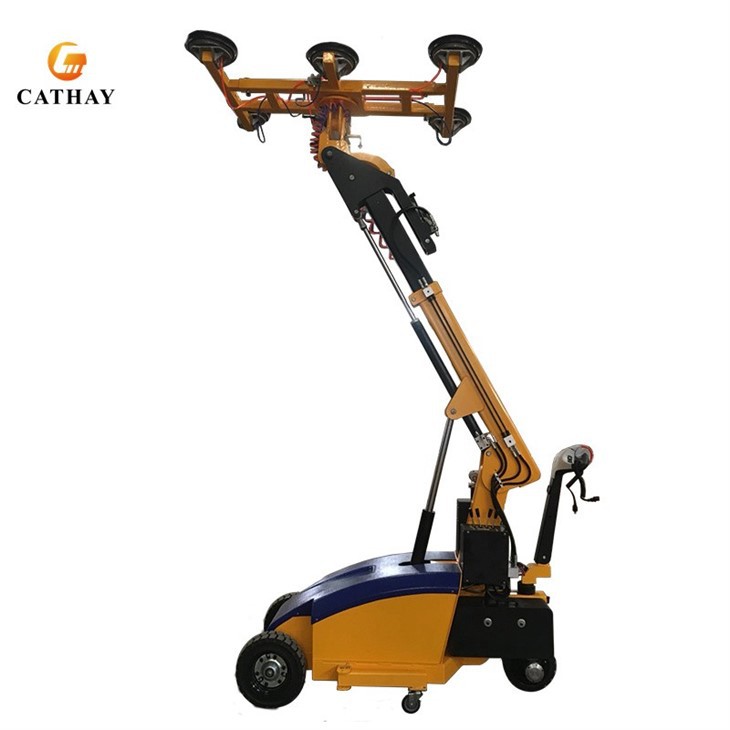

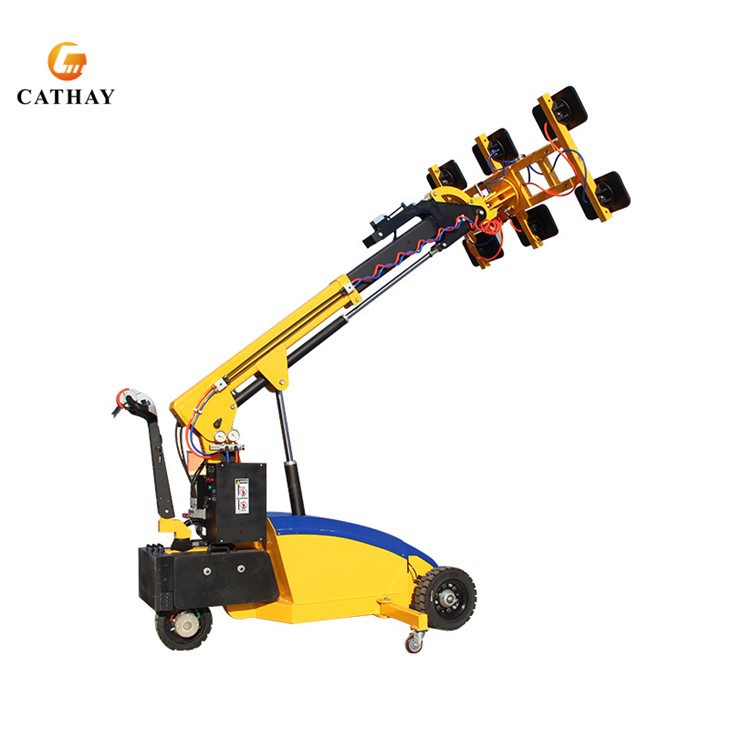

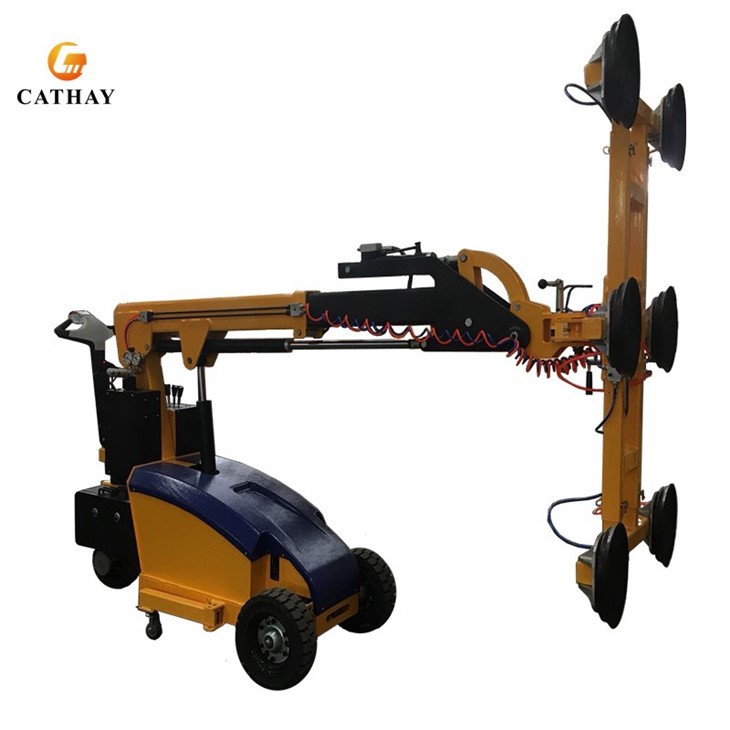

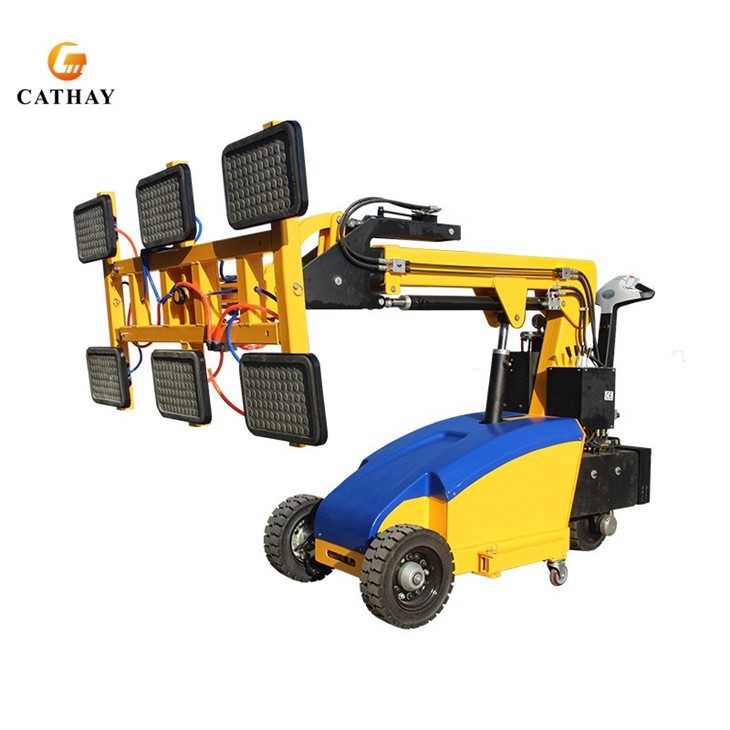

Electric Moving Vacuum Glass Lifter
CATHAYLIFT's Electric Moving Vacuum Glass Lifter is meticulously engineered for handling smooth-surfaced materials like glass, stone, and plates. Premium imported suction cups, coupled with three-layer sealing rings, deliver exceptional sealing and a soft texture, ensuring a secure grip. The robust dual system control, paired with a standard air pressure gauge and a high-quality air pressure pump, guarantees stability and high performance. The integrated vacuum supplementary pressure system guarantees a consistent and secure pressure level throughout the glass handling process, mitigating potential hazards. In the event of an unexpected power outage, the pressure maintenance feature provides valuable emergency time for safe handling.
|
Model |
XC-L350 |
XC-L600 |
XC-L800 |
|
|
Load Capacity |
350kg (arm retract) |
600kg (retract) |
800kg (retract) |
|
|
Lifting Height |
3500mm |
3650mm |
5000mm |
|
|
QTY of Suction Cap |
4pcs |
6pcs |
8pcs |
|
|
Rubber Suction Cap |
Ø300mm |
|||
|
Maintenance-Free Battery |
2x12V/100AH |
2x12V/120AH |
||
|
N.W/G.W |
780/820kg |
1200/1250kg |
1600/1700kg |
|
|
Usages |
Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with different materials of vacuum suction caps. |
|||
Product Details
Larger Working Area
Left/Right Extend/Rectract, Tilt Down/Up
More Details:

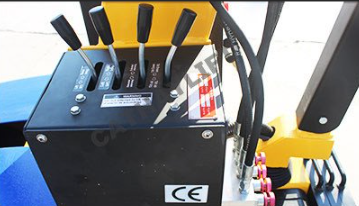

Control Handler (Maneuverability)
Maintenance Free Battery

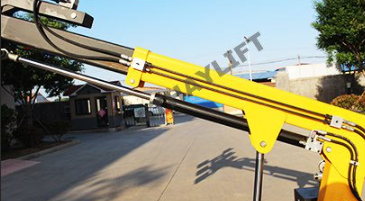

Italy Hydrappp Hydraulic Pump Station

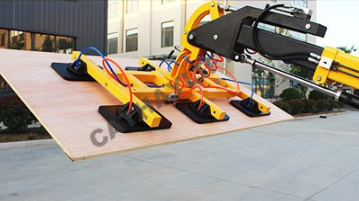

High Quality Suctions
Front Rubber Wheels
Outriggers With Pu Wheels
Advantages
- High-Quality Air Pressure Pump: Guarantees stable quality and high performance, making lifting and movement smooth and reliable.
- Standard Air Pressure Gauge: Provides accurate readings for precise control and optimal performance.
- Powerful Drive System: Effortlessly lifts, moves, and rotates glass panels, minimizing operator effort.
- Dual System Control: Electric walking, lifting, suction, and deflation capabilities provide complete control over glass movement.
- 360° Manual Rotation & 90° Manual Flip: Precise positioning and manipulation of glass panels are made effortless.
- Vacuum Supplementary Pressure System: Maintains a consistent and safe pressure level throughout the glass handling process.
Real Order
