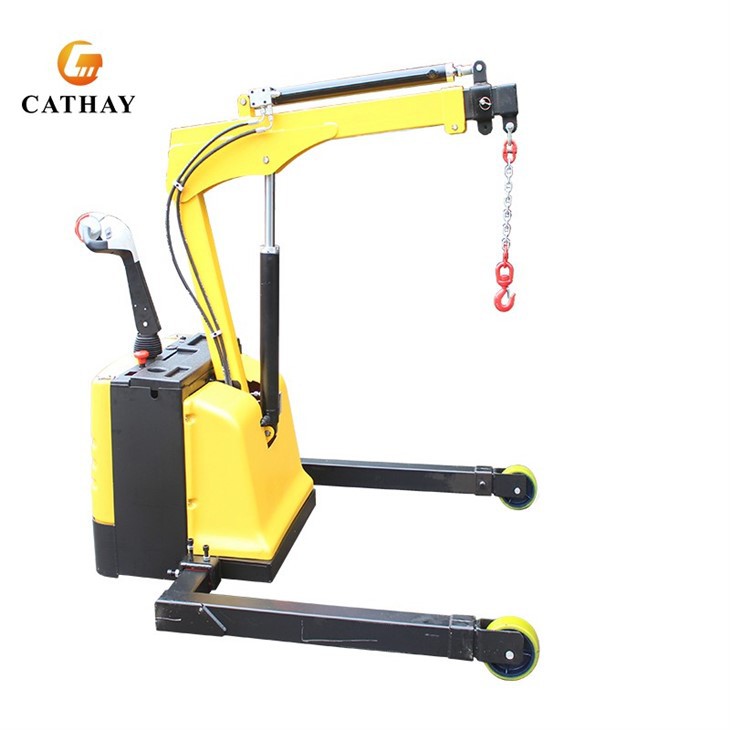

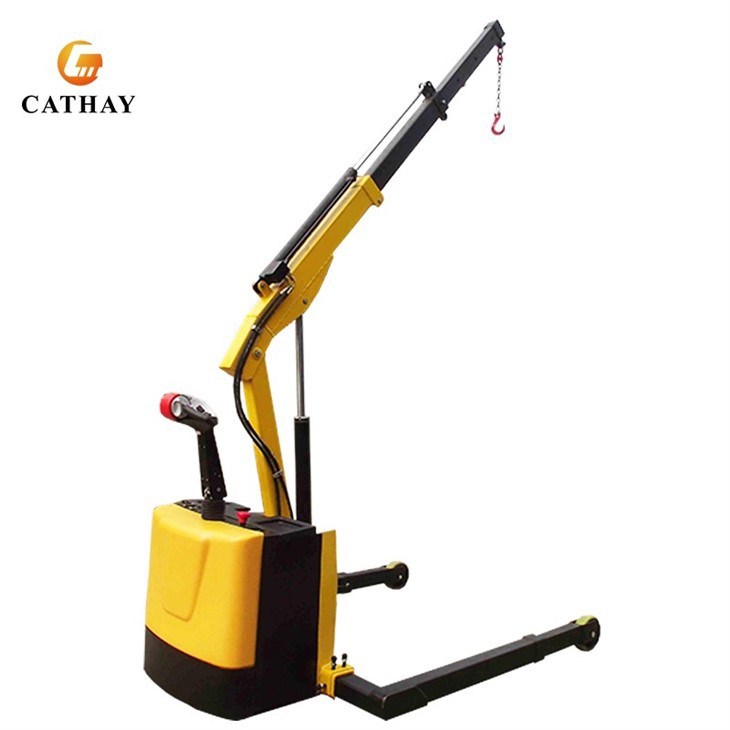

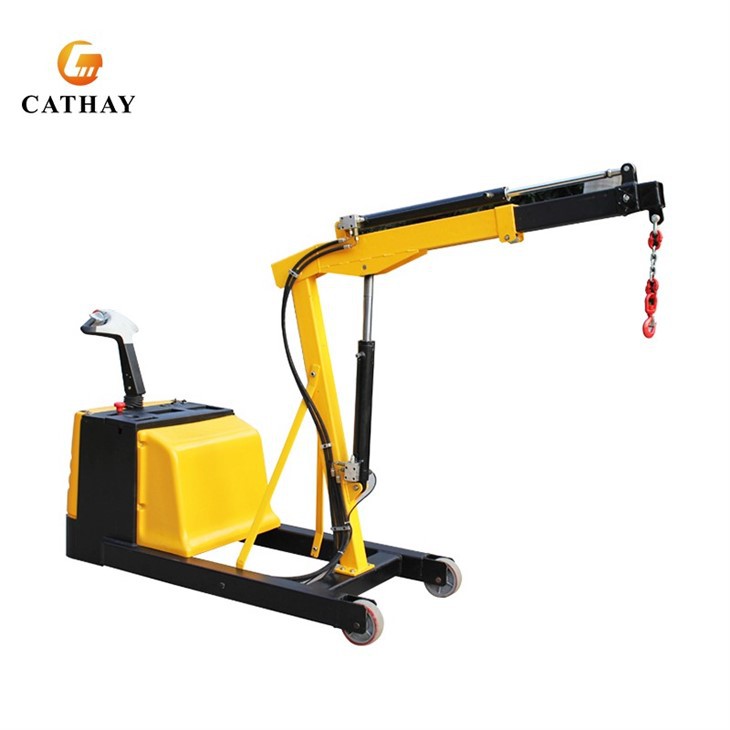

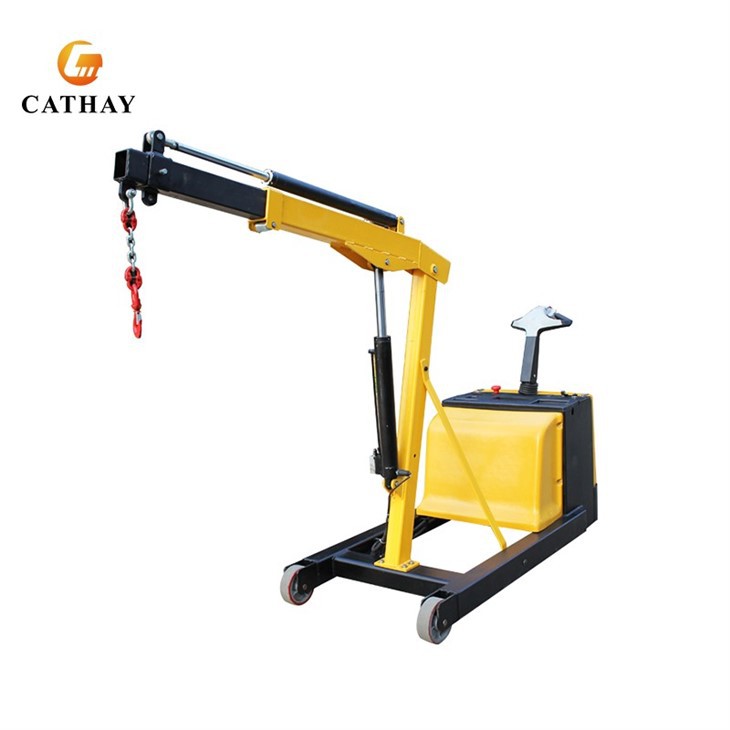

Battery Power Floor Crane
CATHAYLIFT's Battery Power Floor Crane offers compact storage and operational flexibility. Its telescopic arms and support legs are foldable, allowing for a small and convenient package size that makes it ideal for use in confined spaces. Unlike larger forklifts, which can be cumbersome in tight areas, this crane is designed to maneuver with ease, making it the perfect choice for tasks in narrow or constrained environments. An optional arm rotation device adds further versatility, allowing the operator to adjust the crane's reach and direction according to the specific needs of the job. The telescopic boom, which extends up to 2500mm in length, can lift to an impressive height of 3570mm, offering versatility in a variety of operational environments.
|
Model Type |
CSEC-1200 |
CSEC-1200A |
CSEC-700 |
CSEC-900R |
|
Horizontal Reach |
1280+610+610 mm |
1220+610+610mm |
1280+610+610 mm |
|
|
Load Capacity |
1200kg |
1200kg (1280mm) |
700kg (1220mm) |
900kg (1280mm) |
|
Load Capacity (stage 1) |
600kg (1280~1890mm) |
400kg (1220~1830mm) |
450kg (1280~1890mm) |
|
|
Load Capacity (stage 2) |
300kg (1890~2500mm) |
200kg (1890~2440mm) |
250kg (1890~2500mm) |
|
|
Max. Lifting Height |
3570 mm |
3540 mm |
3560 mm |
3180 mm |
|
Min Lifting Height |
960 mm |
935 mm |
950 mm |
1410 mm |
|
Retracted size (W*L*H) |
1920*760*1600 mm |
1865*1490*1570 mm |
2595*760*1580 mm |
2000*1854*1550 mm |
|
Arm Electric Rotation |
/ |
/ |
/ |
120° left/right |
Product Details:

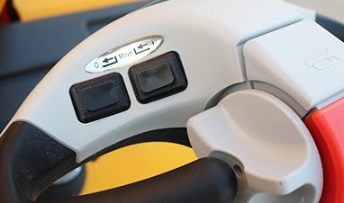

Intelligent Control Handle

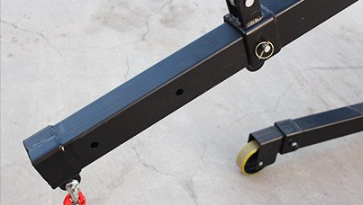

High Strength Telescopic Boom

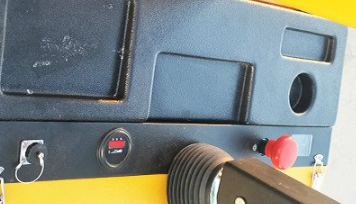

Control Panel, Power Display
Large Capacity Battery

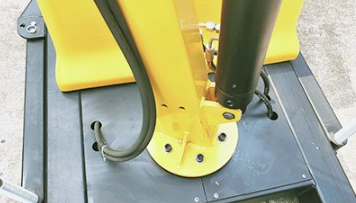

120° Left and Right Rotatable

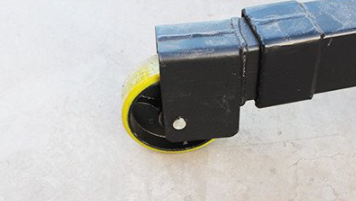

PU Whee
Features & Advantages:
- Efficient Storage with Foldable Outriggers
The outriggers of this floor crane can be easily folded up and stored in a corner when not in use, significantly saving storage space. Additionally, during operation, the outriggers can be securely fixed in place with bolts, ensuring the crane remains stable and safe while lifting heavy loads. This versatile design allows for maximum flexibility in different work environments, whether on-site or in the warehouse.
- Electric Lifting and Telescoping Mechanism
The electric lifting and telescoping functions of this crane offer exceptional ease of use, reducing the labor required for manual lifting tasks. The electro-hydraulic boom lifting system provides a wide range of motion, ensuring flexible and precise adjustments to reach heavy items efficiently. The electric telescoping system simplifies the lifting process, allowing for quick and smooth extension, while the manual telescopic adjustment provides an additional range for larger or more challenging loads.
- Dual Telescoping Functionality
The telescopic arm is designed with two parts: one section that is adjusted electrically and another that is manually operated. This dual-functionality offers a versatile lifting experience, as the manual adjustment provides additional extension for reaching even further distances or lifting exceptionally large objects. Customers can easily extend or retract the arm depending on the specific needs of their tasks, ensuring that every operation is completed with efficiency and precision.
