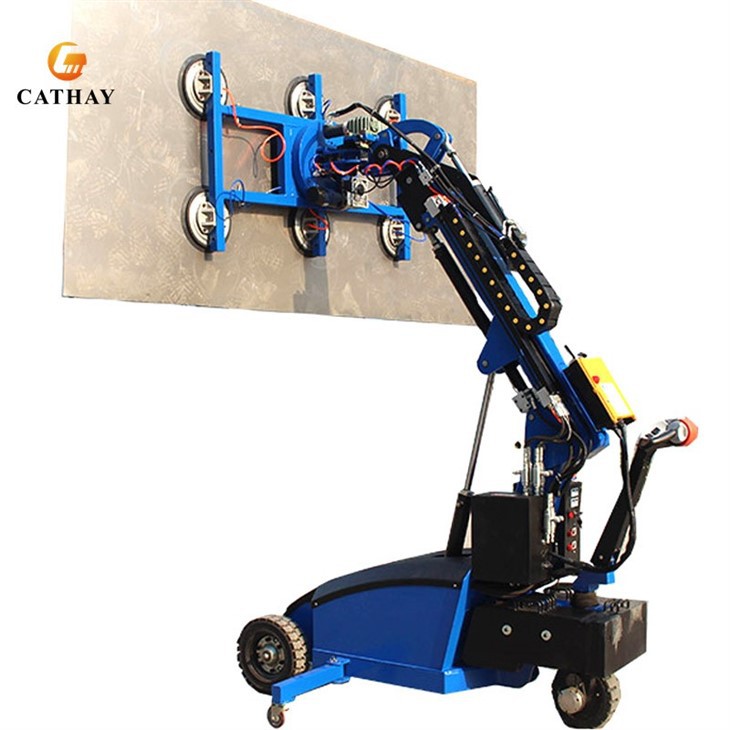

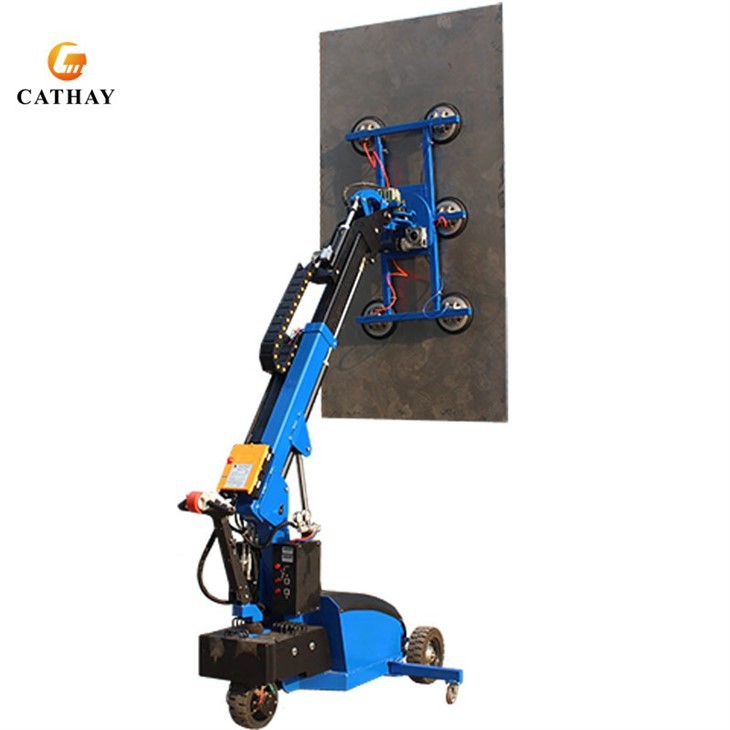

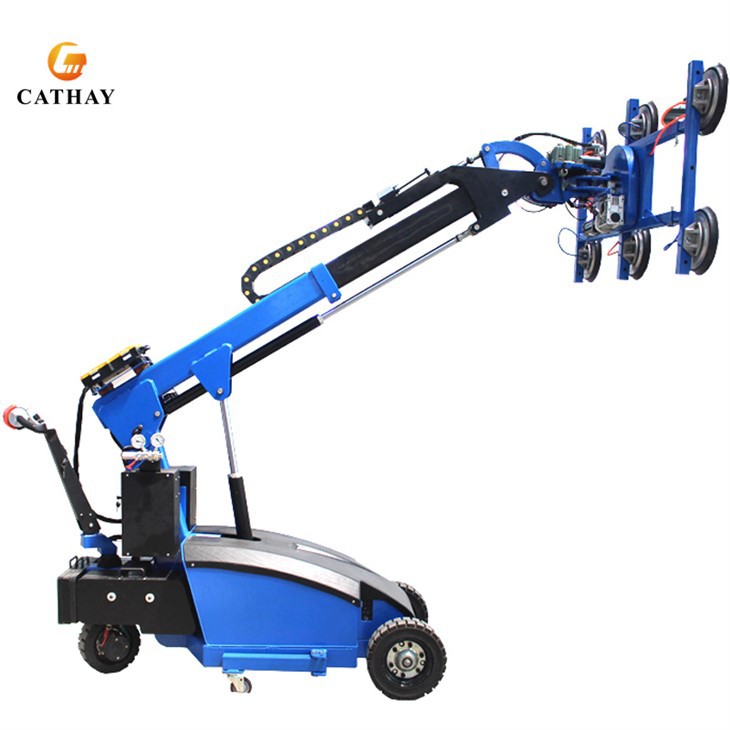

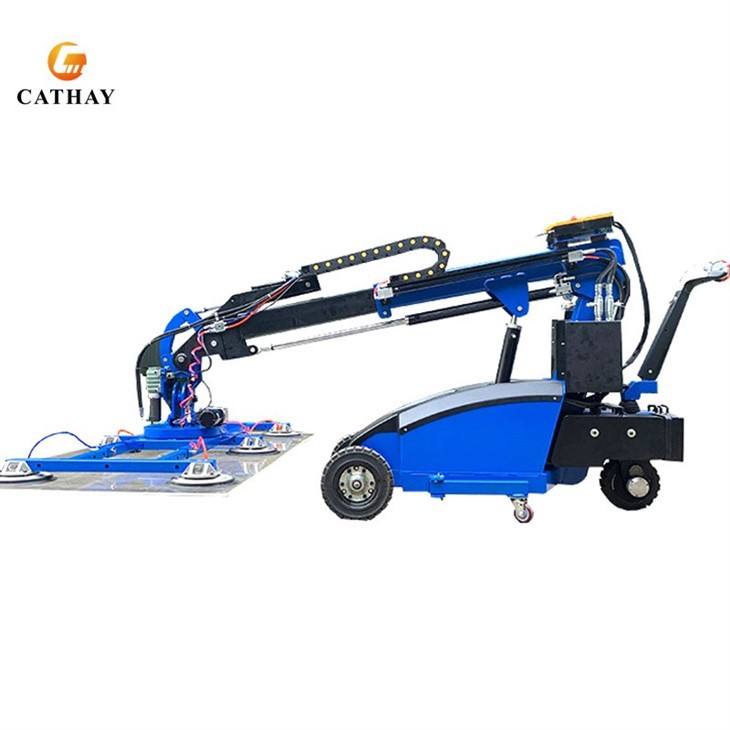

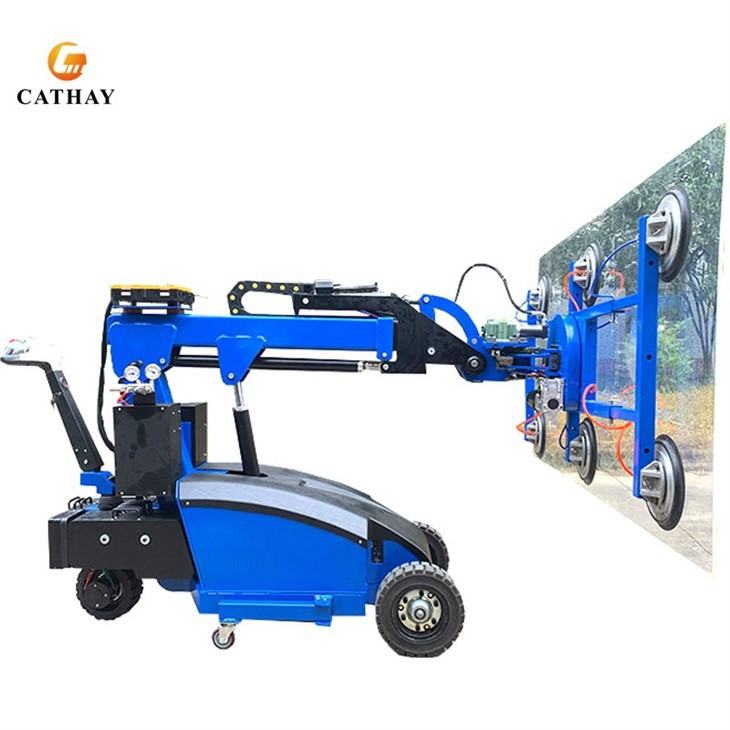

Glass Handling Lifter
CATHAYLIFT's Glass Handling Lifter integrates smart features to boost productivity. The electric flip function allows operators to securely invert materials like glass or marble without manual intervention, minimizing physical strain and risk. Its electric walking system, paired with anti-slip stability controls, ensures precise positioning, critical for delicate installations. The lifter's modular suction cup configuration adapts to complex layouts, while the redundant suction system adheres to stringent safety standards.
|
Model |
XC-L350 |
XC-L600 |
XC-L800 |
|
|
Load Capacity |
350kg (retract) |
600kg (retract) |
800kg (retract) |
|
|
Lifting Height |
3500 mm |
3650 mm |
5000 mm |
|
|
QTY of Suction Cap |
4pcs |
6pcs |
8pcs |
|
|
Rubber Suction Cap |
Ø300 mm |
|||
|
Maintenance-free Battery |
2x12V/100AH |
2x12V/120AH |
||
|
Battery Charger |
Smart Charger |
|||
|
Drive Motor |
24V/600W |
24V/900W |
24V/1200W |
|
|
Lifting Motor |
24V/2000W/5L |
24V/2000W/12L |
||
|
Front Wheel |
Ø310x100mm |
Ø375x110mm |
Ø400x150mm |
|
|

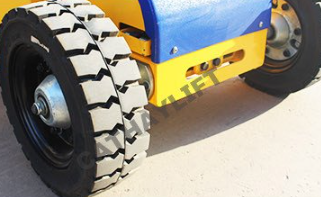

Driving Wheel |
Ø250x80mm |
Ø310x100mm |
Ø300x125mm |
|
|
N.W/G.W |
780/820kg |
1200/1250kg |
1600/1700kg |
|
|
Packing Size |
Wooden carton: 3150x1100x1860mm. (1x20GP Loading Qty: 5sets) |
|||
|
Movement |
Automatic |

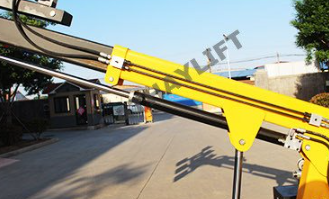

1.Pad frame vertical up/down 180°automatic 2.Boom in/out 610/760mm automatic 3.Powered arm up/down automatic 4.Lateral side shift 100mm automatic |
||
|
Manual (2kinds) |
1.Pad frame tilt left/right 90° manual 2.Pad frame rotation 360°manual |
|||
|
Usages |

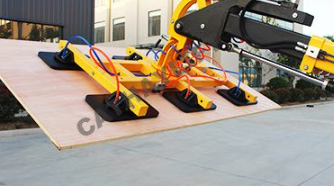

Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with different materials of vacuum suction caps. |
|||
Product Details：

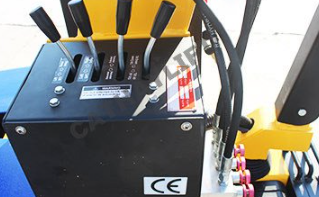

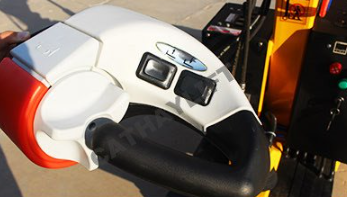

Advanced functionality meets user-centric design in CATHAYLIFT's Glass Handling Lifter. Operators benefit from electric front/rear movement, electric hydraulic lifting, and a seamless electric flip mechanism, enabling precise control when lifting, rotating, or flipping heavy plates. A multi-function remote control handle centralizes operations, allowing intuitive management of speed, direction, and suction with ergonomic ease. The lifter's high-power drive motor and electronic stepless speed regulation ensure smooth, stable movement even under maximum load, while its compact design enhances maneuverability in tight spaces. Power efficiency is prioritized through an integrated intelligent charger, enabling quick replenishment and extended uptime.
Advantages:
- Self-Propelled and Versatile: The lifter's self-propelled nature grants it exceptional mobility, allowing for effortless maneuvering within your workspace. The various circuit vacuum suction options provide adaptability for handling different sizes and types of glass, from large windows to delicate mirrors.
- Corrosion-Resistant Design: The CATHAYLIFT vacuum spreader undergoes a rigorous shot blasting and painting process, resulting in superior anti-corrosion performance. This ensures long-lasting durability and minimal maintenance requirements, even in demanding environments.
- High-Quality Pump Station for Stability: The robust pump station ensures smooth and stable lifting and lowering of the vacuum spreader. This reliable system eliminates vibrations and ensures the safe and secure handling of glass panels of any weight.
- Pressure Reducing Valve for Overload Protection: The pressure reducing valve prevents overload operation, safeguarding both the lifter and the glass from damage. This intelligent feature ensures safe and reliable operation even under heavy lifting demands.
- Adjustable Descending Speed for Precision: The flow control valve allows for precise adjustment of the descending speed, providing control and flexibility during the handling process. This feature ensures the safe and gentle lowering of glass panels, minimizing the risk of damage.
Real Order:
