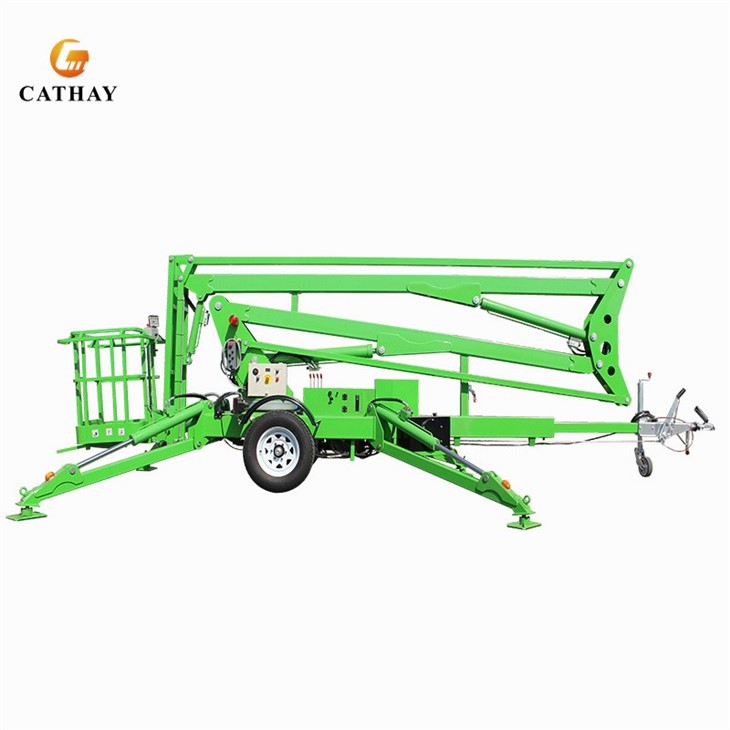

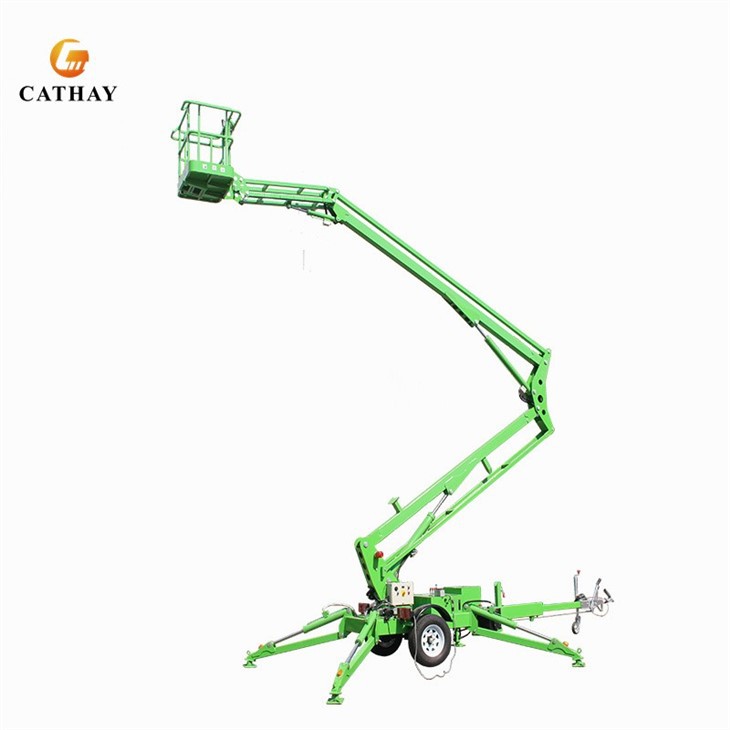

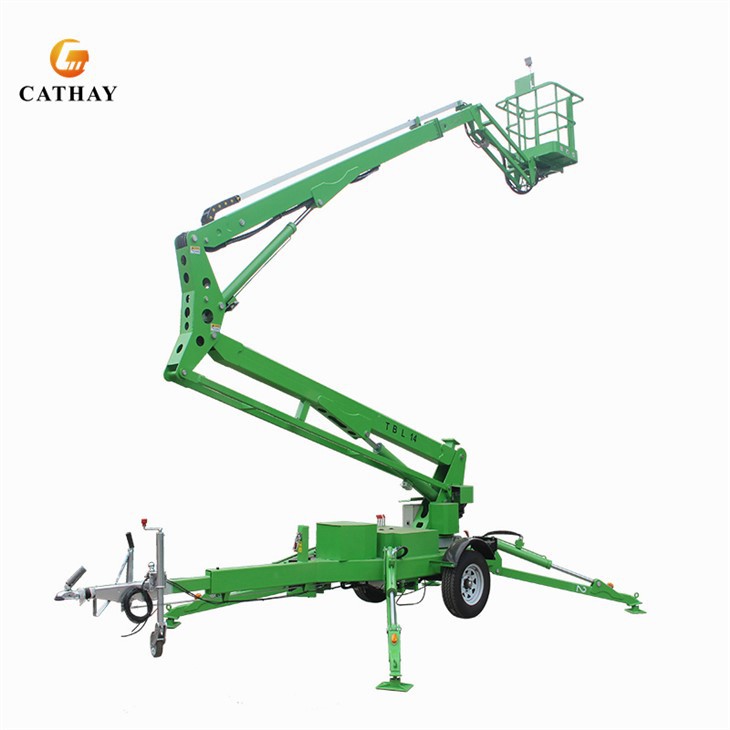

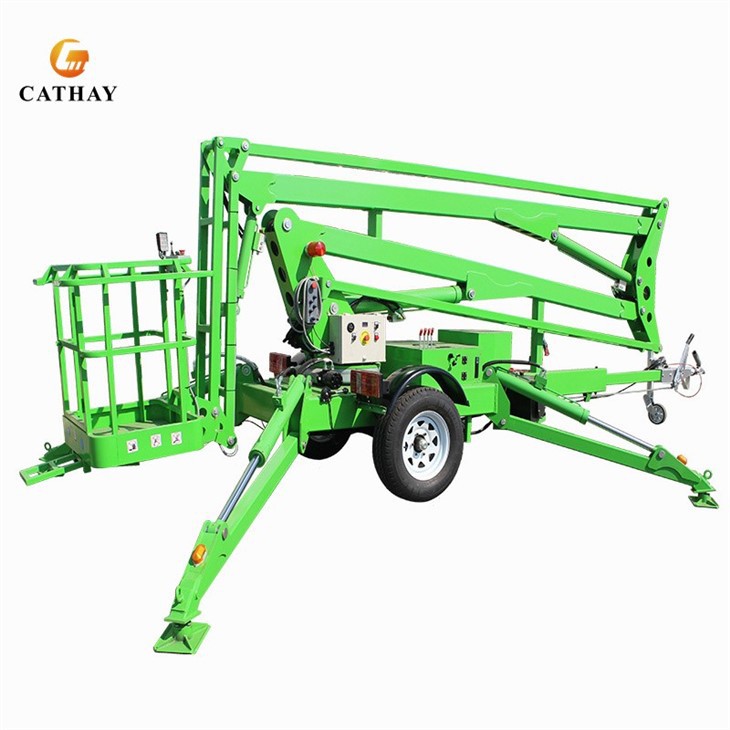

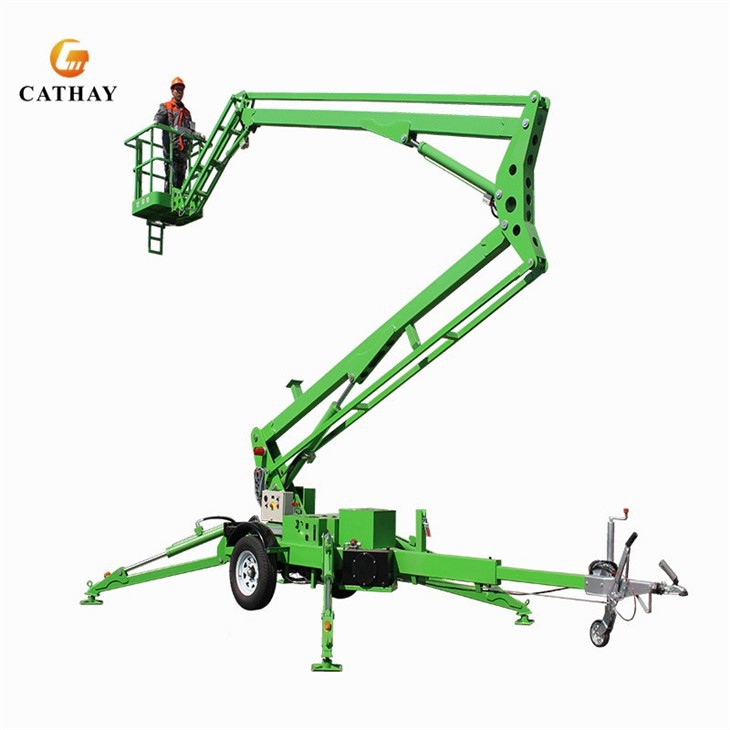

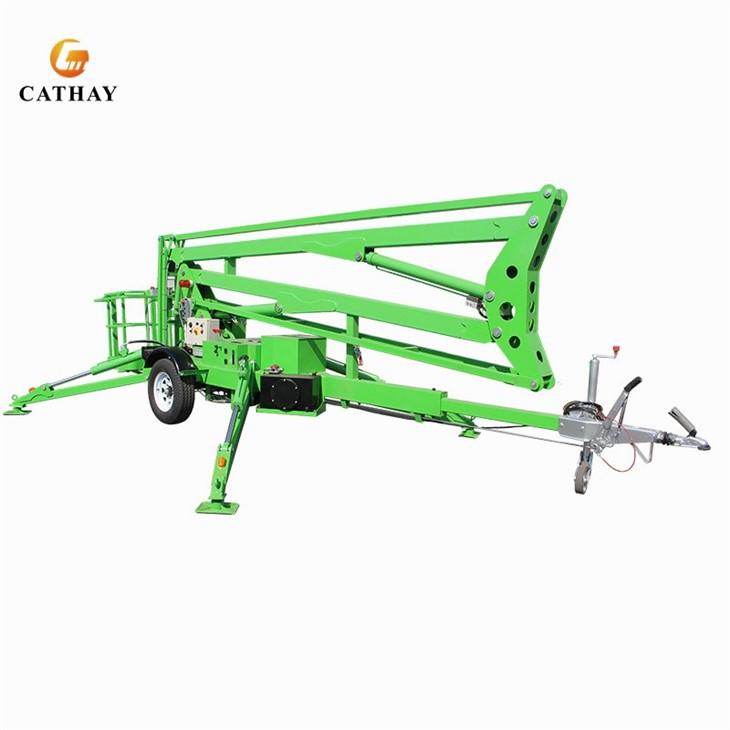

Mobile Hydraulic Towable Boom Lift
CATHAYLIFT Mobile Hydraulic Towable Boom Lift is a cutting-edge solution designed to enhance operational efficiency and safety. This advanced lifting tool is engineered with an array of features that ensure both versatility and reliability, making it an ideal choice for various applications.
|
Model Type |
CTA-10A |
CTA-12A |
CTA-14T |
CTA-16T |
CTA-18T |
CTA-20T |
|
Version |
Articulated |
Articulated |
Telescopic |
Telescopic |
Telescopic |
Telescopic |
|
Lifting height |
10M |
12M |
14M |
16M |
18M |
20M |
|
Working height |
12M |
14M |
16M |
18M |
20M |
22M |
|
Load Capacity |
200KG |
|||||
|
Platform size |
0.9*0.7M |
|||||
|
Net Weight |
1855KG |
2050KG |
2500KG |
2800KG |
3000KG |
3100KG |
|
Overall Size( L*W*H) |
5.2*1.7*2.1M |
6.2*1.7*2.1M |
5.6*1.7*2.1M |
5.7*1.7*2.2M |
6.5*1.8*2.3M |
5.8*1.9*2.3M |
Details Images:
(Germany) Alko Brakes
Swivel Stand (Adjustable Height)
Auxiliary Wheel
Triangular Structure
Precision Connection Point
Boom Pressure Relief Valve
Outrigger Locks (To Prevent Shaking When Moving)
Diesel Motor(Ysd)
Durable Pneumatic Tires
Car Tail Light
Seat Belts Secure The Body
Control Room
Torsion Shaft
Fuel Tank
Two Service Doors
Filter Alarm System
Tilt Sensor
Control Panel
Manual Accelerator
The Electromagnetic Valve
Outriggers Control Switch
Basket With Ladder
Platform Control System
Warning Light
Main Cylinder
Arm Cylinder
Jlb
Self-Balancing Outriggers
Self-Balancing Outrigger Cylinder
Battery Only For Dc Power
Key Features and Advantages:
- Swing Platform Rotation: The boom lift's platform can rotate up to 160°, allowing effortless access to challenging and elevated areas.
- Imported Double Brake System: Featuring a high-quality brake system from Italy, this ensures optimal safety during operation.
- Overflow Valve: This component prevents overloading, safeguarding the lift from potential damage and enhancing durability.
- Automatic Level Sensor: The level sensor automatically detects if the four groups of outriggers are at uniform heights, ensuring superior stability during use.
- Power Options: Available in diesel, gasoline, AC/DC, dual power, or multi-power configurations, users can select the most suitable option based on their specific requirements.
- Adjustable Legs and Wide Bases: Designed for added stability, especially in rugged terrains, making it versatile for various environments.
