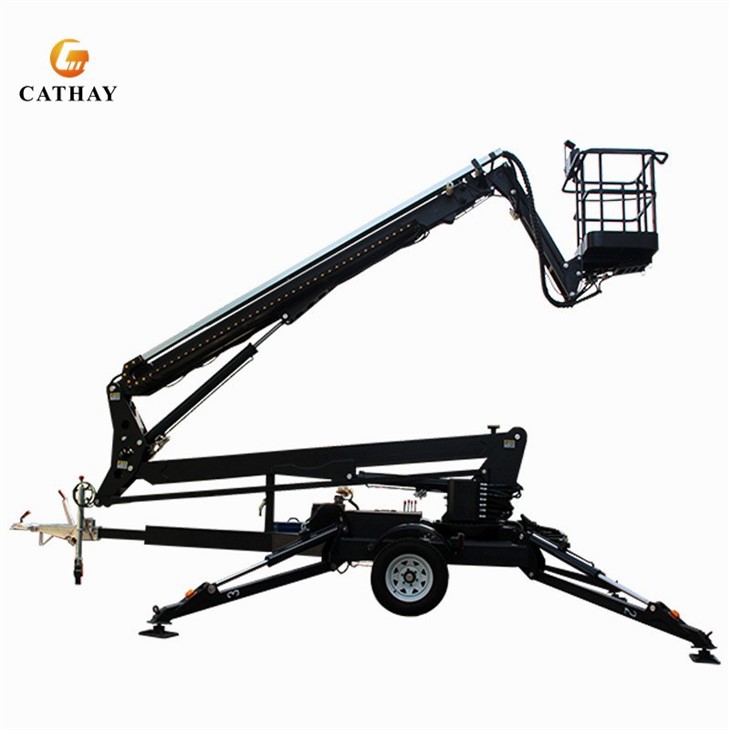

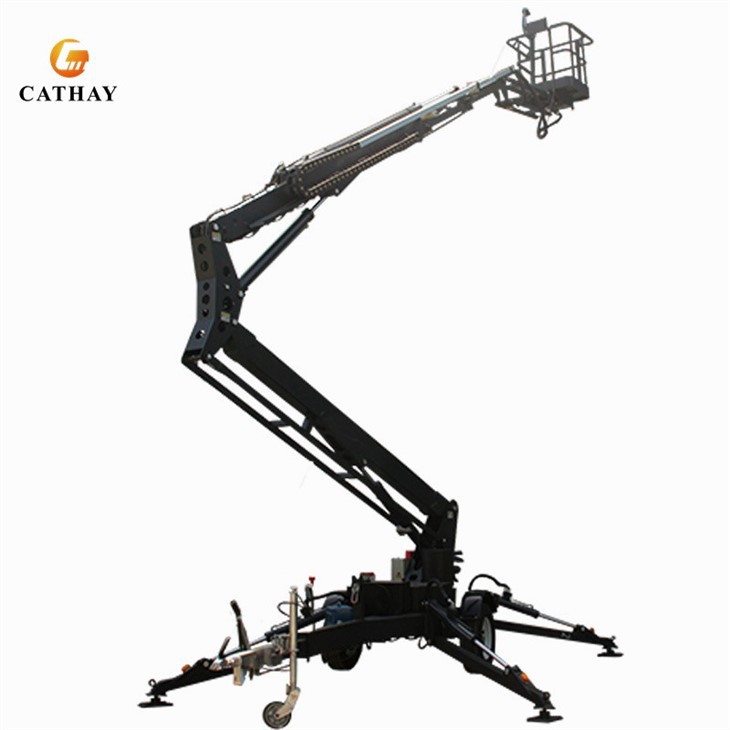

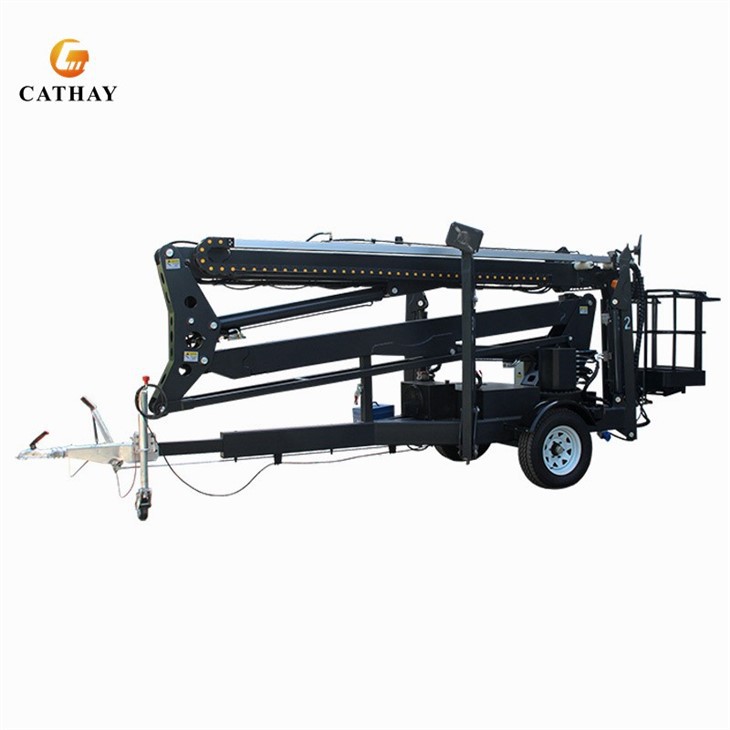

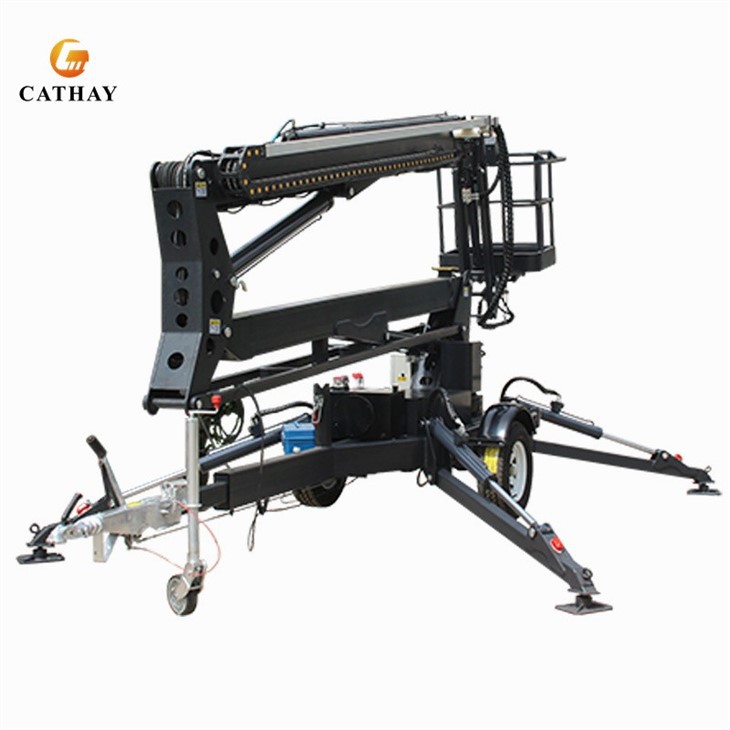

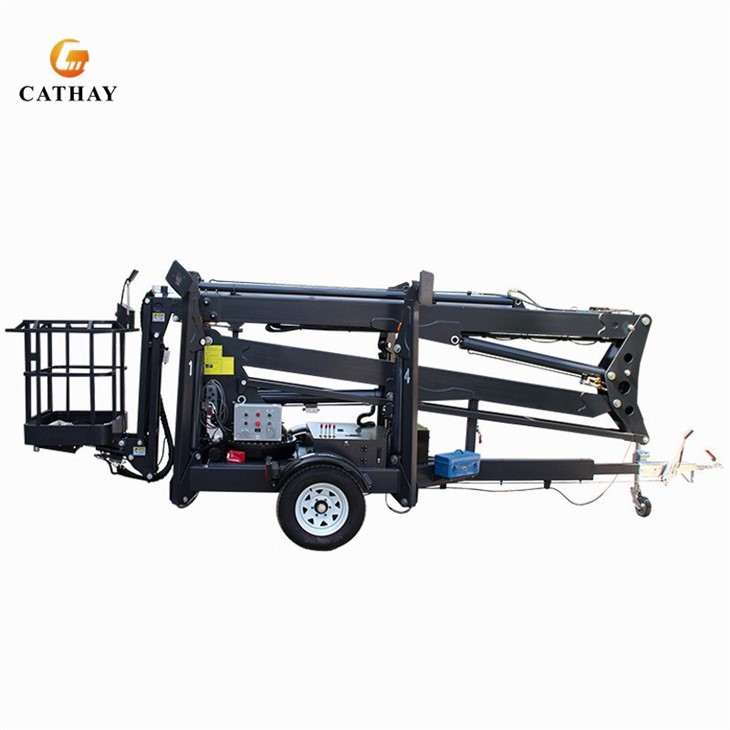

10~20m Hydraulic Electric Spider Lift
The CATHAYLIFT Hydraulic Electric Spider Lift offers a versatile lifting height range of 10 to 20 meters, ideal for high-altitude operations. Featuring an advanced integrated hydraulic and electrical system, it ensures reliable performance and efficiency. Its compact structure and flexible steering make it highly maneuverable, allowing it to navigate and cross obstacles with ease. The platform's unique capability to work while moving at any height adds to its operational convenience. Designed for durability and precision, the CATHAYLIFT Spider Lift is the perfect solution for demanding aerial tasks in various environments.
Products Details
Advantages:
The CATHAYLIFT Hydraulic Electric Spider Lift is engineered for superior high-altitude performance with a lifting height of 10 to 20 meters. This advanced lift combines a hydraulic and electrical system within a compact structure, ensuring smooth and flexible operation. It features a fully telescopic working arm made of high-strength steel plate, providing strong driving force and excellent maneuverability. The platform can work while moving at any height and rotates 360° continuously, with an automatic leveling mechanism and manual control for precision. The spider-type outriggers ensure stability with a large span, independent retraction, and a flashing light for safety. The lift includes an emergency power source, anti-slip steel plate base, and rear-positioned working bucket for easy access. Additionally, the electric control system can be equipped with a wireless remote for ground control, and imported hydraulic valves adjust boom speed.
Real Order
|
Model Type |
CTA-10A |
CTA-12A |
CTA-14T |
CTA-16T |
CTA-18T |
CTA-20T |
|
Version |
Articulated |
Articulated |
Telescopic |
Telescopic |
Telescopic |
Telescopic |
|
Lifting height |
10M |
12M |
14M |
16M |
18M |
20M |
|
Working height |
12M |
14M |
16M |
18M |
20M |
22M |
|
Load capacity |
200KG |
|||||
|
Platform size |
0.9*0.7M |
|||||
|
Working radius |
5.5M |
6.5M |
8.5M |
10.5M |
11M |
11M |
|
Net Weight |
1855KG |
2050KG |
2500KG |
2800KG |
3000KG |
3100KG |
|
Overall Size( L*W*H) |
5.2*1.7*2.1M |
6.2*1.7*2.1M |
5.6*1.7*2.1M |
5.7*1.7*2.2M |
6.5*1.8*2.3M |
5.8*1.9*2.3M |
|
Supporting Legs Stride Distance(Horizontal) |
3.0 M |
3.6 M |
3.6 M |
3.9 M |
3.9 M |
3.9 M |
|
Supporting Legs Stride Distance (Vertical) |
4.7 M |
4.7 M |
4.7 M |
4.9 M |
4.9 M |
4.9 M |
|
Wind Resistance Level |
≦5 |
|||||
|
20'/40' Container Loading Quantity |
20'/1set |
20'/1set |
20'/1set |
20'/1set |
20'/1set |
20'/1set |
|
40'/3sets |
40'/3sets |
40'/3sets |
40'/3sets |
40'/3sets |
40'/2sets |
|
|
Power optional |
AC-electrical Power (Xi'an Motor) |
|||||
|
Diesel Power Motor (YSD Motor) |
||||||
|
Gasoline Power (Honda Motor) |
||||||
|
DC Battery Power (Bucher Motor) |
||||||
|
AC+ Diesel/Gas Power (Dual Power) |
||||||
|
AC/Diesel/Gas+DC Power (Dual Power) |
||||||
|
Extra Optional |
Friction wheel walking device: (Automatic Moving) |
|||||
