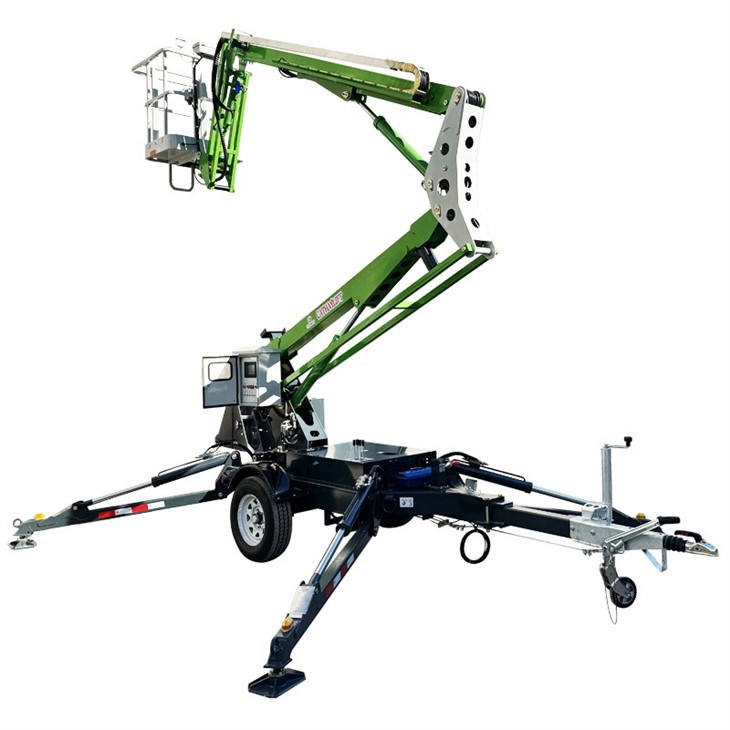

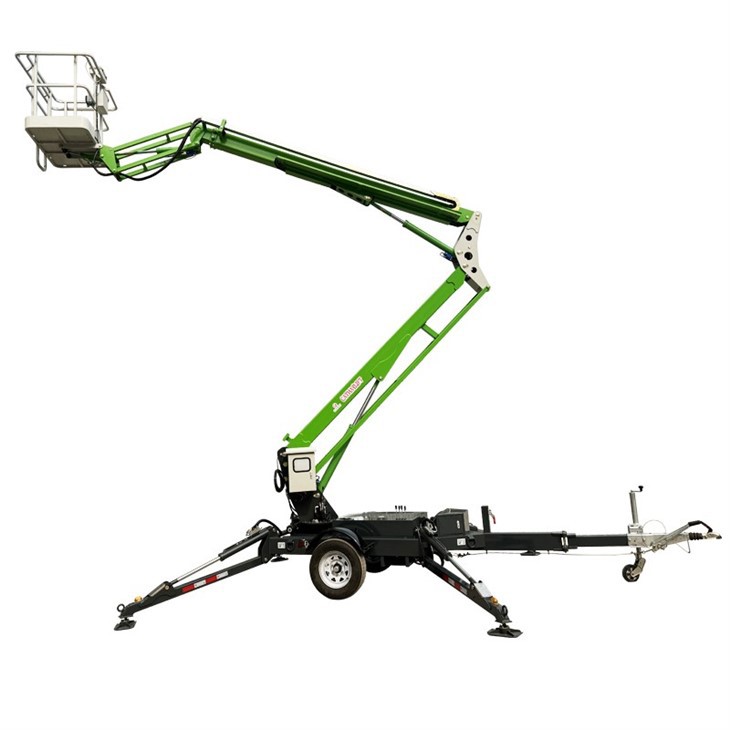

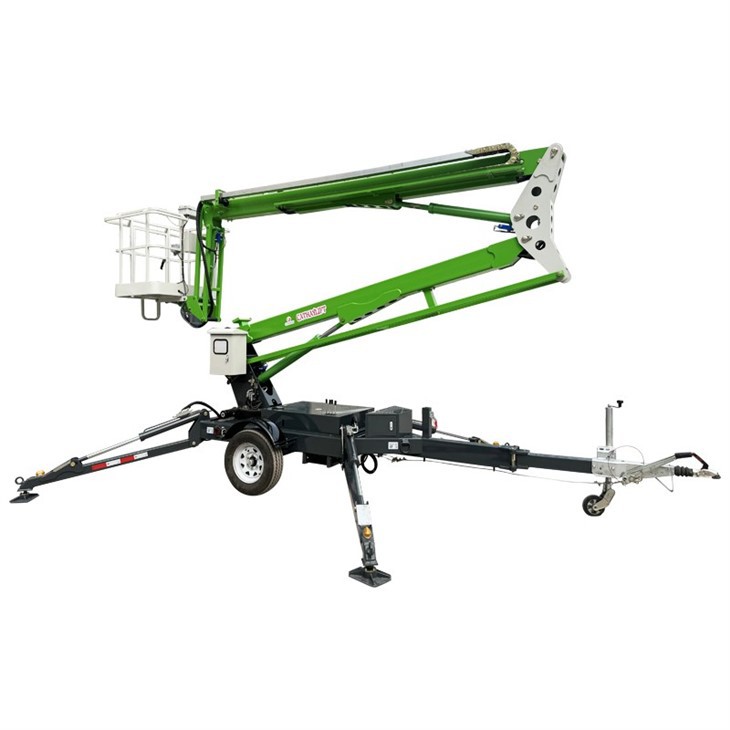

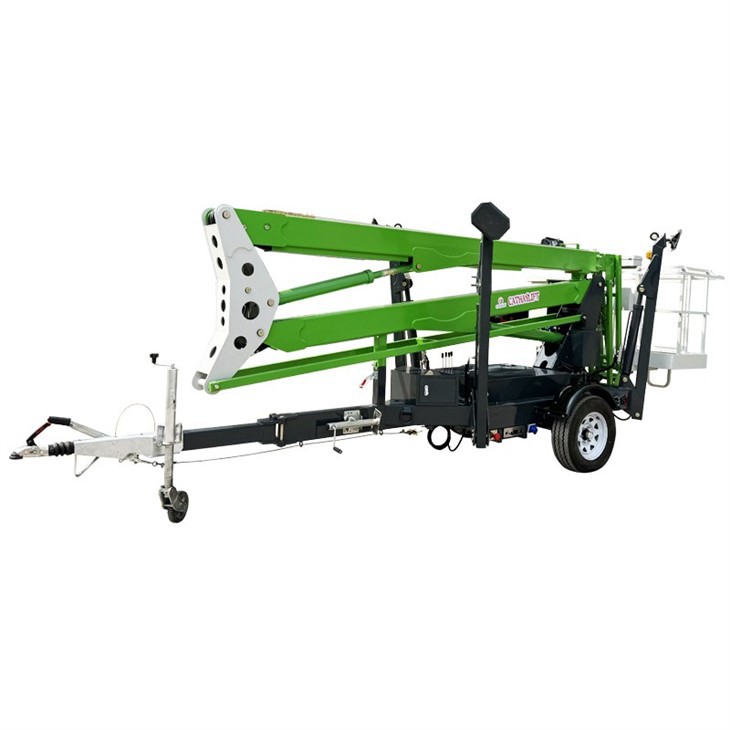

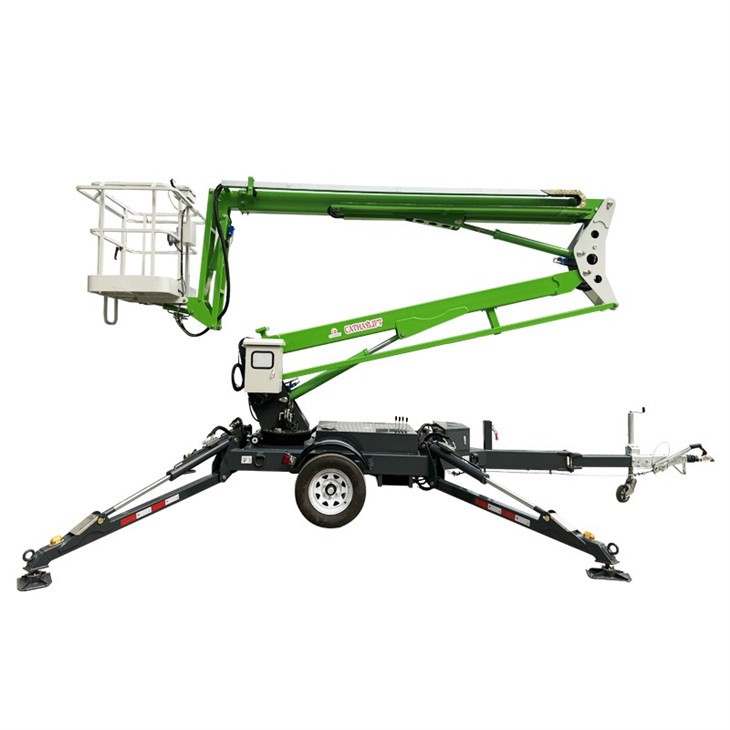

Mobile Trailer Boom Lift
CATHAYLIFT's Mobile Trailer Boom Lift offers multiple power options-battery, AC, diesel, gasoline, and hybrid-providing flexibility to suit different operational needs while minimizing maintenance requirements.
|
Model Type |
CTA-10A |
CTA-12A |
CTA-14T |
CTA-16T |
CTA-18T |
CTA-20T |
|
Version |
Articulated |
Telescopic |
||||
|
Lifting Height |
10M |
12M |
14M |
16M |
18M |
20M |
|
Working Height |
12M |
14M |
16M |
18M |
20M |
22M |
|
Load Capacity |
200 KG |
|||||
|
Platform Size |
0.9*0.7 M |
|||||
|
Working Radius |
5.5M |
6.5M |
8.5M |
10.5M |
11M |
11M |
|
Net Weight |
1855KG |
2050KG |
2500KG |
2800KG |
3000KG |
3100KG |
|
Power Options |
AC-electrical (Xi'an Motor) |
|||||
|
Diesel (YSD Motor) |
||||||
|
Gasoline (Honda Motor) |
||||||
|
DC Battery (Bucher Motor) |
||||||
|
AC+ Diesel/Gas (Dual Power) |
||||||
|
AC/Diesel/Gas+DC (Dual Power) |
||||||
|
Extra Optional |
Friction wheel walking device: Automatic moving |
|||||
Product Details:
Its 359˚ continuous turntable rotation and full proportional hydraulic control system enable precise and smooth operation, while the spacious platform ensures comfort and safety for workers. The inclusion of a friction wheel walking device allows for automatic movement, enhancing efficiency on-site. Its ability to be towed without requiring a commercial driver's license further adds to its appeal, making it a top-selling choice for professionals seeking a powerful, portable, and user-friendly aerial work solution.
Detail Images:
Ground control panel and platform control system:
The ground control system features an LED display screen and supports multiple language options, with the ability to manually input additional languages. It also includes an electronic manual, allowing users to access comprehensive machine parameters and the angle details of each outrigger. On the platform control system, an anti-misoperation button and an emergency stop button are integrated.
Multiple power options:
Optional 1: diesel
Optional 2: DC battery
Optional 3: AC electric
Optional 4: gasoline
Optional 5: hybrid power
Outrigger controller：
Each of the four outriggers is managed by its dedicated controller. Prior to operation, the outriggers are deployed and adjusted to distribute weight evenly, ensuring the equipment reaches a stable and balanced state
Features and benefits:
- 360˚ Continuous Rotation: The full proportional hydraulic control system and 360˚ turntable enable smooth, precise movements, enhancing efficiency and ease of operation.
- Advanced Control Systems: The ground control features an LED display with multi-language support and an electronic manual for real-time monitoring of machine parameters and outrigger angles. The platform control includes anti-misoperation and emergency stop buttons for added safety.
- Friction Wheel Walking Device: This innovative feature allows for automatic movement, reducing manual effort and improving productivity on-site.
Real Order:
