Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of single mast aluminum alloy lift in China. We warmly welcome you to buy discount single mast aluminum alloy lift for sale here from our factory. Quality products and reasonable price are available.
CATHAYLIFT high-end aluminum alloy lifting platform adopts an integrated lifting fence system. Its innovative structural design has three core advantages: the reinforced frame structure significantly improves the overall stability of the equipment; the folding storage solution greatly optimizes the warehousing and logistics efficiency; the intelligent single-operator operating system realizes the streamlining of manpower allocation through modular design, which can reduce the manual operation cost by about 35% compared with traditional equipment, and significantly improve the economic benefits of material handling.
|
Model No. |
CUP-5H |
CUP-6H |
CUP-8H |
CUP-9H |
CUP-10H |
CUP-12H |
|
|
Max.Platform Height |
5m |
6m |
8m |
9m |
10m |
12m |
|
|
Max Working Height |
6m |
8m |
10m |
11m |
12m |
14m |
|
|
Load Capacity |
150kg |
150kg |
150kg |
150kg |
136kg |
120kg |
|
|
Platform Size |
0.67*0.66m |
||||||
|
Occupants |
One person |
||||||
|
Outrigger Coverage |
1.7*1.7m |
1.7*1.7m |
1.6*1.6m |
1.7*1.7m |
1.9*1.7m |
2.3*1.9m |
|
|
Overall Size |
1.24*0.74*1.99m |
1.24*0.74*1.99m |
1.36*0.74*1.99m |
1.4*0.74*1.99m |
1.42*0.74*1.99m |
1.46*0.81*2.68m |
|
|
Net Weight |
300kg |
320kg |
345kg |
365kg |
385kg |
460kg |
|
|
Motor Power |
0.75kw |
||||||
|
Options |
DC |
12v |
|||||
|
DC Motor |
1.5kw |
||||||
|
Charger |
12v15A |
||||||

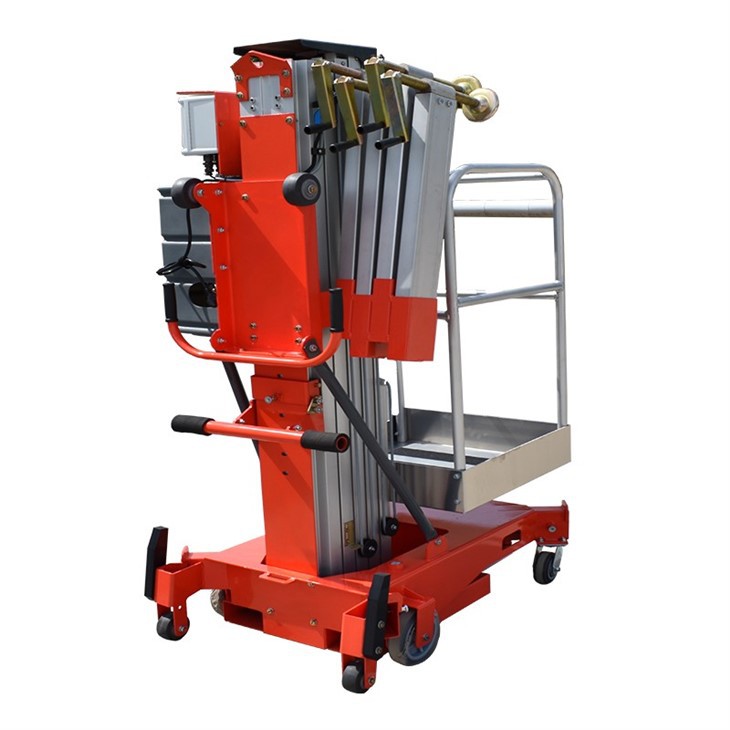

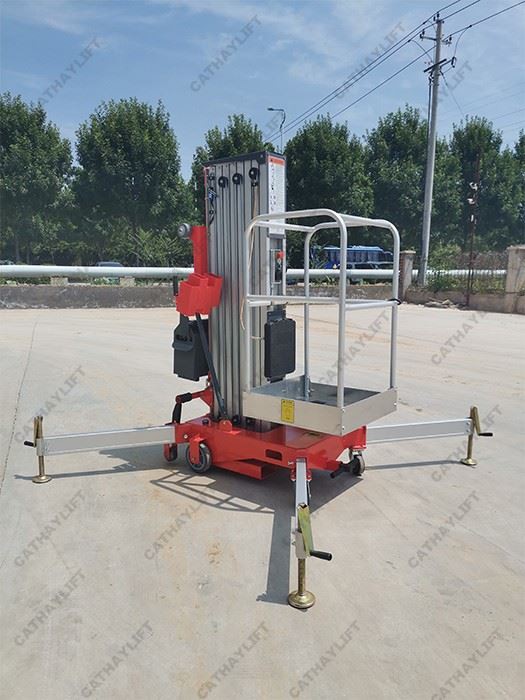

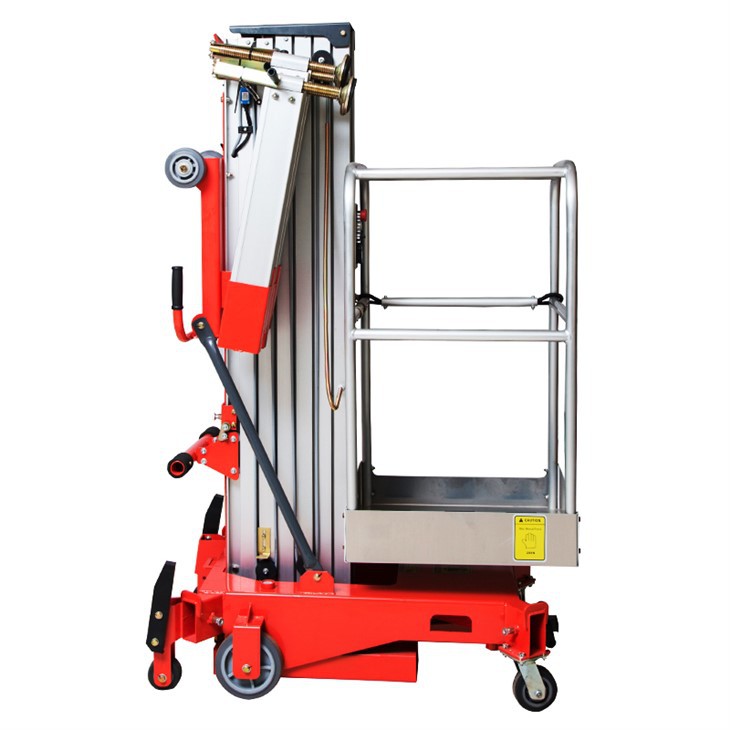

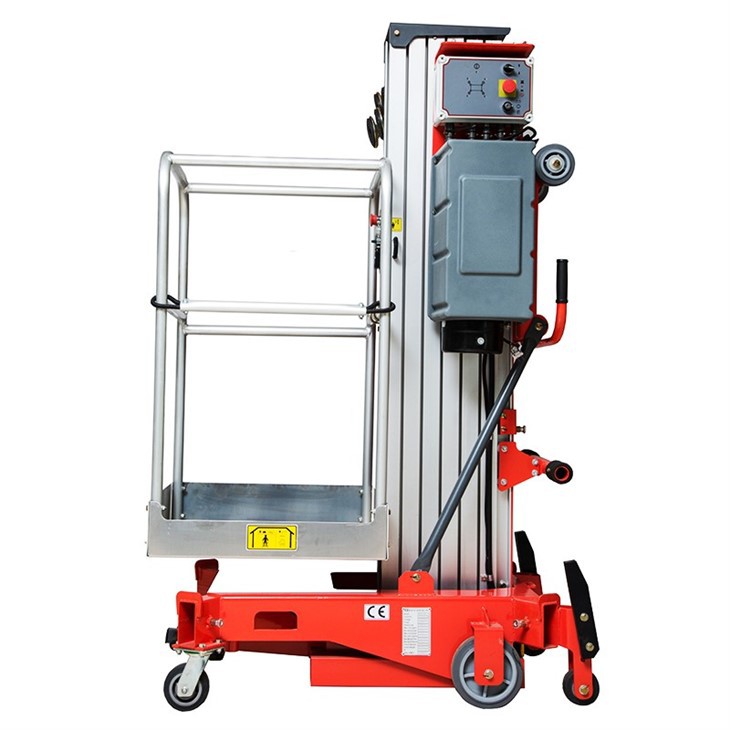

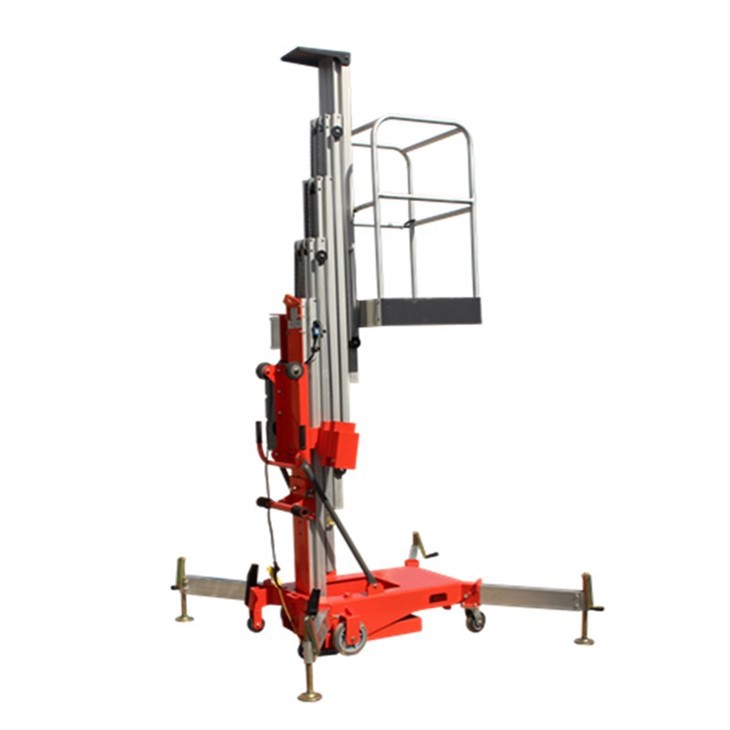

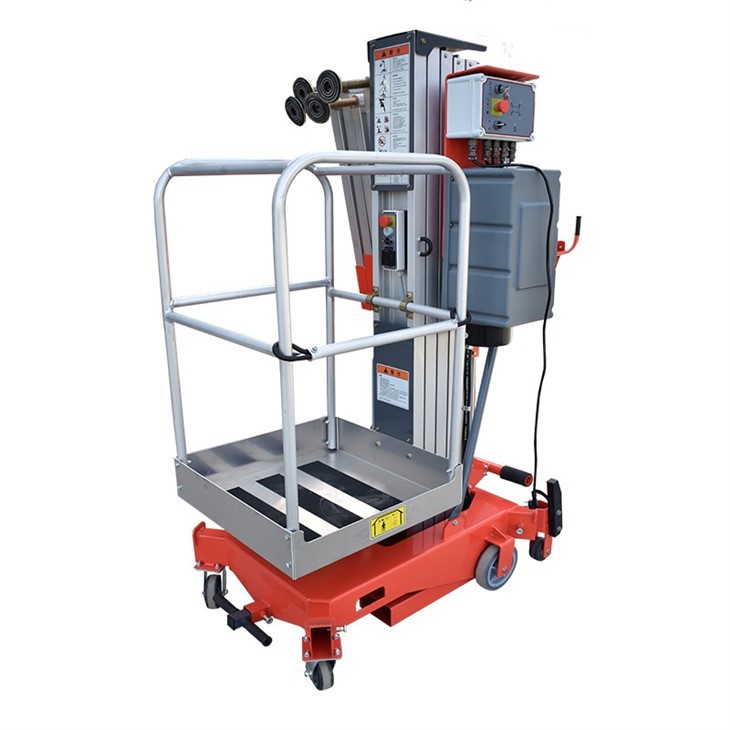

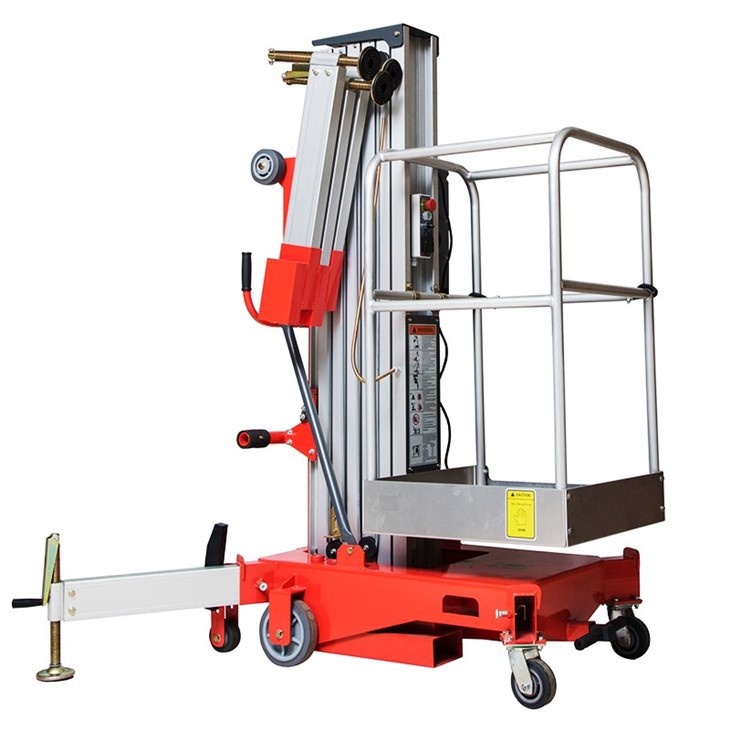

Products Details:
Advantage:
1. The integrated sealed electric control box is adopted, which combines operational safety and maintenance convenience.
2. The modular telescopic mechanism supports multi-level extension, and the overall structure has passed the waterproof and rust-proof certification, with a service life of 500,000 telescopic cycles.
3. The working platform is composed of a composite of patterned anti-slip steel plate and aviation aluminum, achieving a 35% optimization of the strength-to-weight ratio and a 28% reduction in the platform's own weight
4. Efficient hydraulic power unit With an energy storage voltage stabilizing device, the system has a fast response time and is equipped with a quick maintenance interface

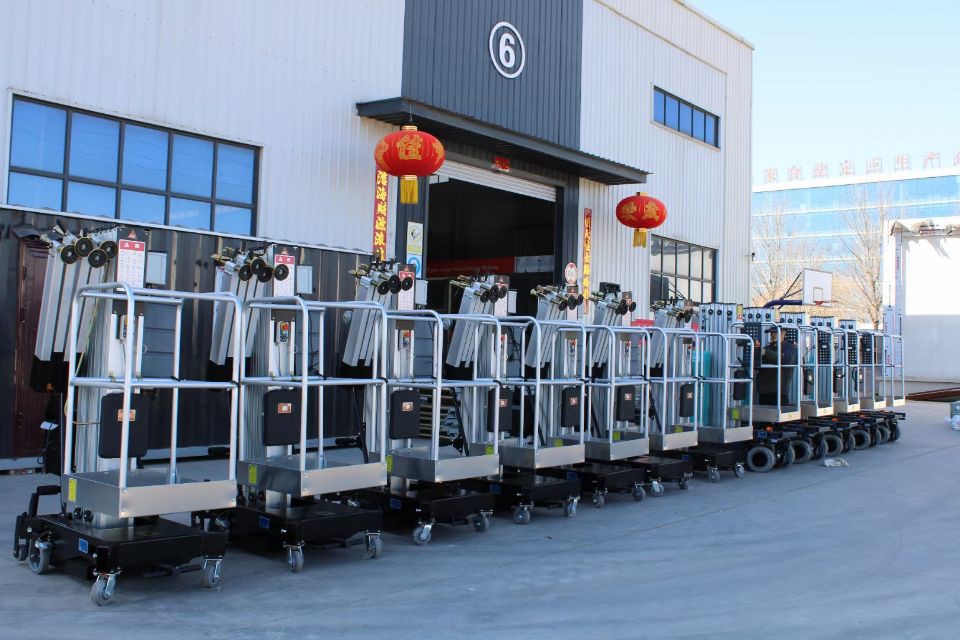

Real Order:
