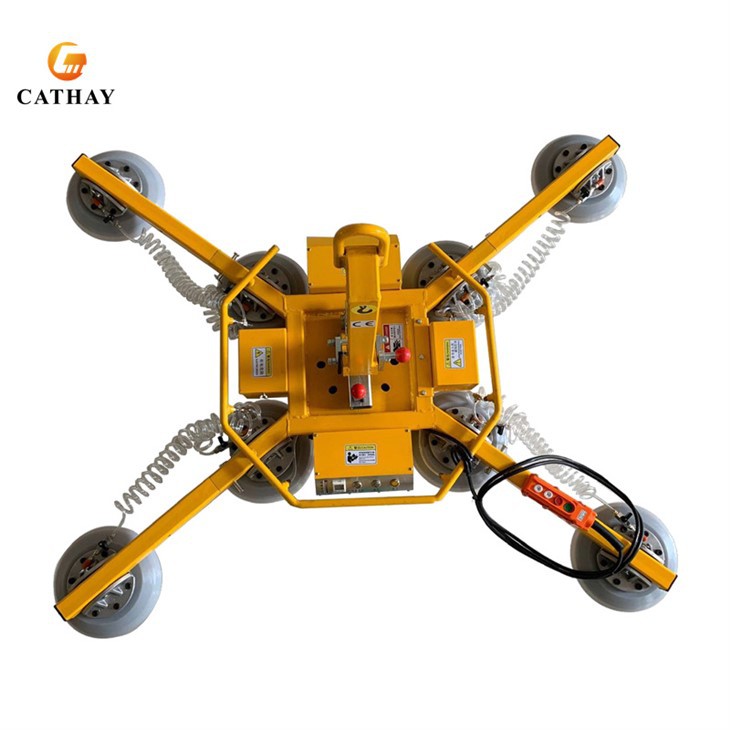

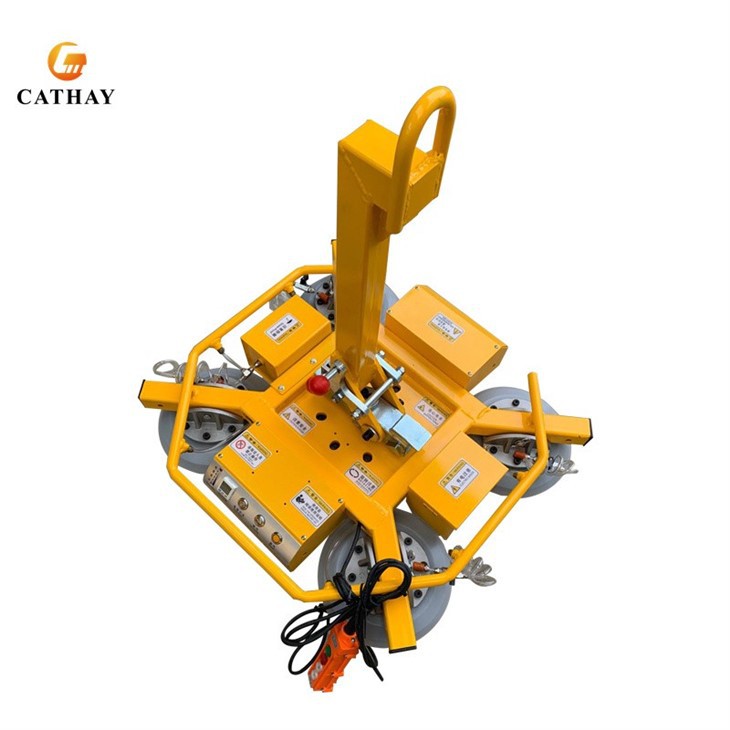

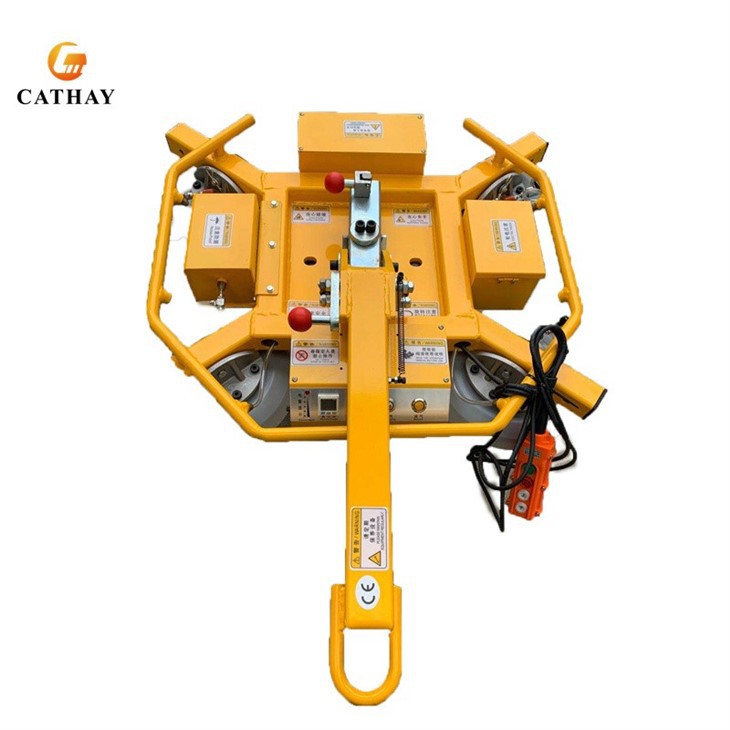

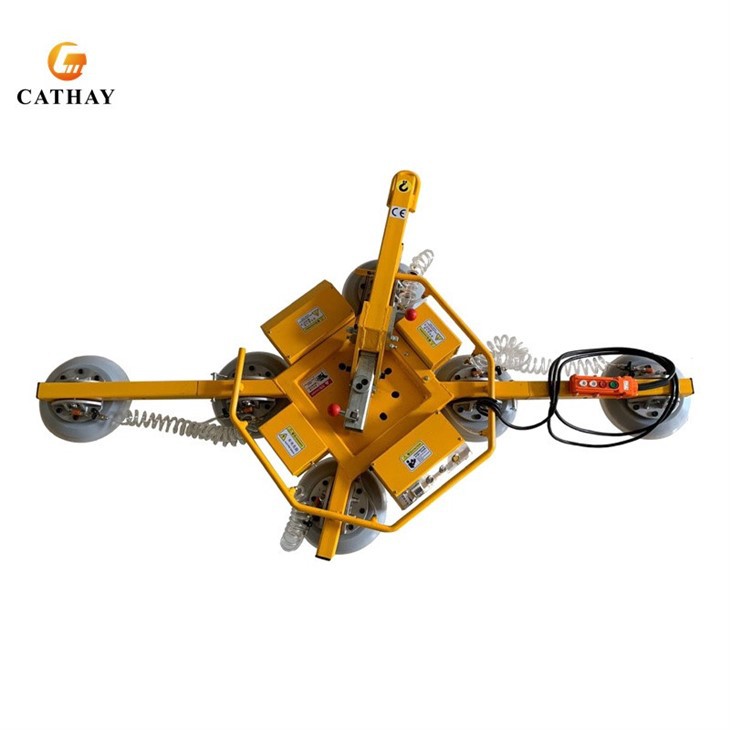

Suction Cup Glass Lifter
CATHAYLIFT prioritizes safety above all else, equipping the lifter with a digital pressure gauge and accumulator system that continuously monitors and regulates pressure levels, providing peace of mind throughout the entire installation process. This intelligent system ensures that the glass is securely held and safely transported, minimizing the risk of accidents and maximizing worker safety. With the CATHAYLIFT Suction Cup Glass Lifter, you can confidently tackle even the most challenging high-altitude glass installations with unparalleled efficiency, precision, and safety.
|
Model |
XC-S400 |
XC-S600 |
XC-S800 |
XC-S1000 |
XC-S1200 |
|
|
Lifting Capacity |
kg |
400 |
600 |
800 |
1000 |
1200 |
|
Cup Qty |
/ |
4 |
6 |
8 |
10 |
12 |
|
Single Cup Diameter |
mm |
300 |
300 |
300 |
300 |
300 |
|
Single Cup Capacity |
kg |
100 |
100 |
100 |
100 |
100 |
|
Rotation |
/ |
360°manual rotate |
||||
|
Tilting |
/ |
90° manual |
||||
|
Voltage |
V |
DC12 |
||||
|
Charger |
V |
AC220/110 custom |
||||
|
Weight |
kg |
70 |
90 |
100 |
120 |
120 |
|
Sucker Frame Size |
mm |
850*750*300 |
1800*900*300 |
1760*1460*300 |
1900*1600*300 |
1900*1600*300 |
|
Extension Bar Length |
mm |
500 |
||||
|
Control System |
/ |
Integrated Control Cabinet and Wired Remote Control |
||||
|
Overall Size |
mm |
1230*910*390mm, packed by wooden box |
||||
|
Gross Weight |
kg |
97 |
110 |
123 |
150 |
163 |
Product Details
Maintenance:
Residual Magnetism and Workpiece Removal:
- Understanding Residual Magnetism: After powering down the lifter, a residual magnetic field remains in the sleeves and electric suction cups. This residual magnetism can make removing large workpieces challenging due to the combined effect of the magnetic force and smooth surface adhesion.
- Workpiece Removal Techniques: To minimize the effect of residual magnetism, gently rock or twist the workpiece while lifting to break the magnetic hold. Ensure the suction cup table remains smooth and free from debris to prevent additional adhesion.
- Avoiding Excessive Force: Avoid using excessive force during workpiece removal, as this can damage the suction cups and table surface. If the workpiece is particularly stubborn, consider using a non-metallic tool to assist in its removal.
Maintaining the Suction Cup Table:
- Surface Condition: The suction cup table should be kept flat, smooth, and polished to maximize suction efficiency and prevent premature wear.
- Regular Cleaning: Regularly clean the suction cup table with a soft cloth and a mild cleaning solution. Avoid harsh chemicals or abrasive materials that can damage the surface.
- Grinding: If necessary, lightly grind the table surface with a fine-grit sandpaper while the suction cups are powered on. Grind only until the surface is smooth and free of blemishes. Avoid excessive grinding to prevent unnecessary wear.
