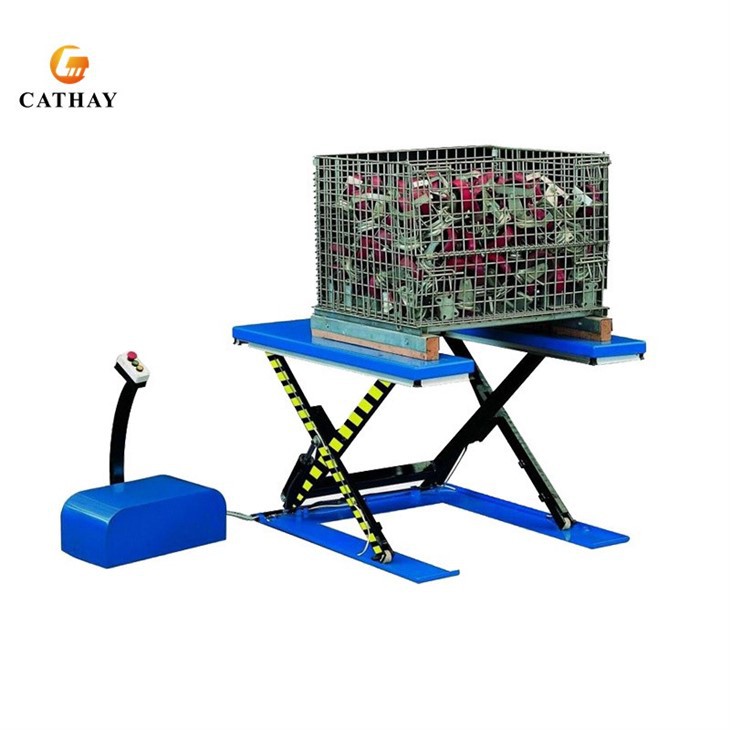

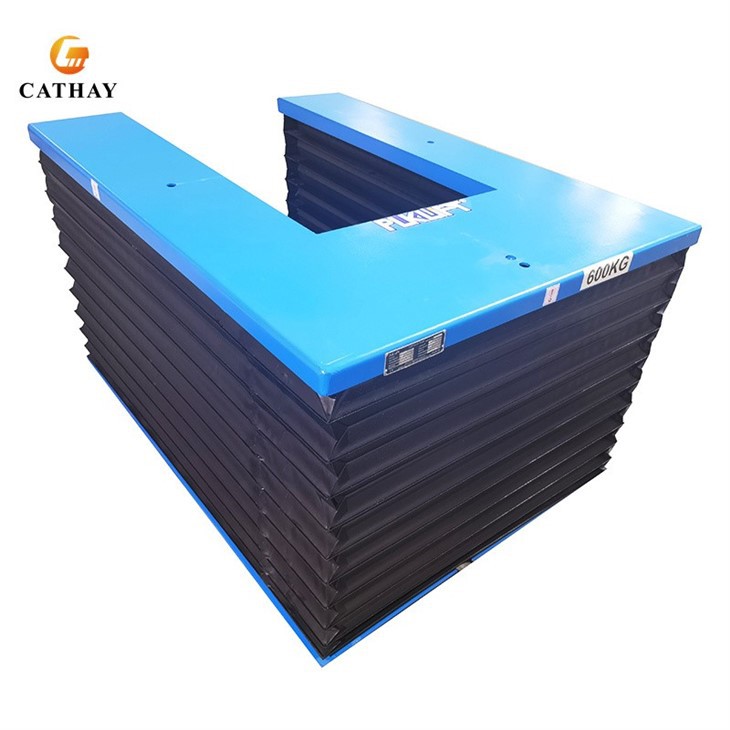

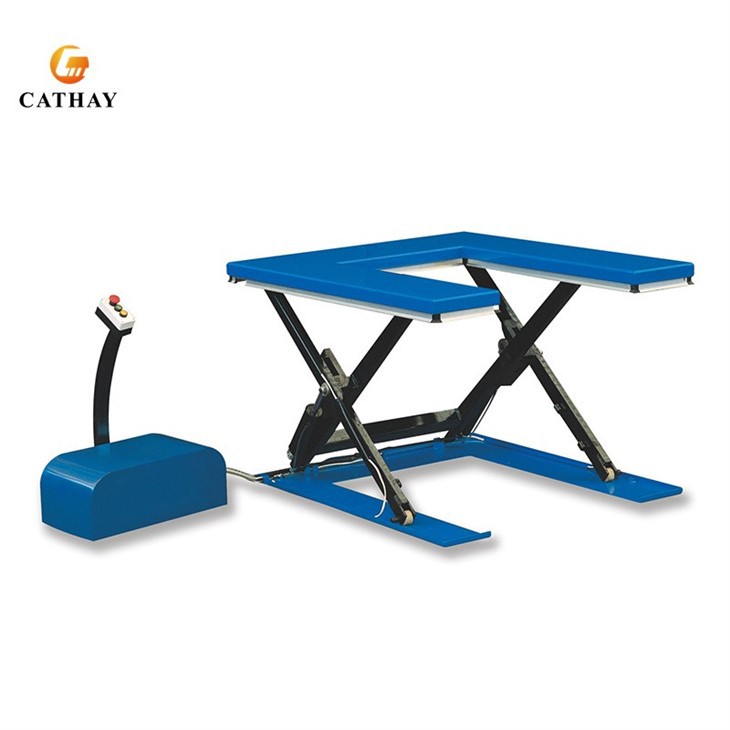

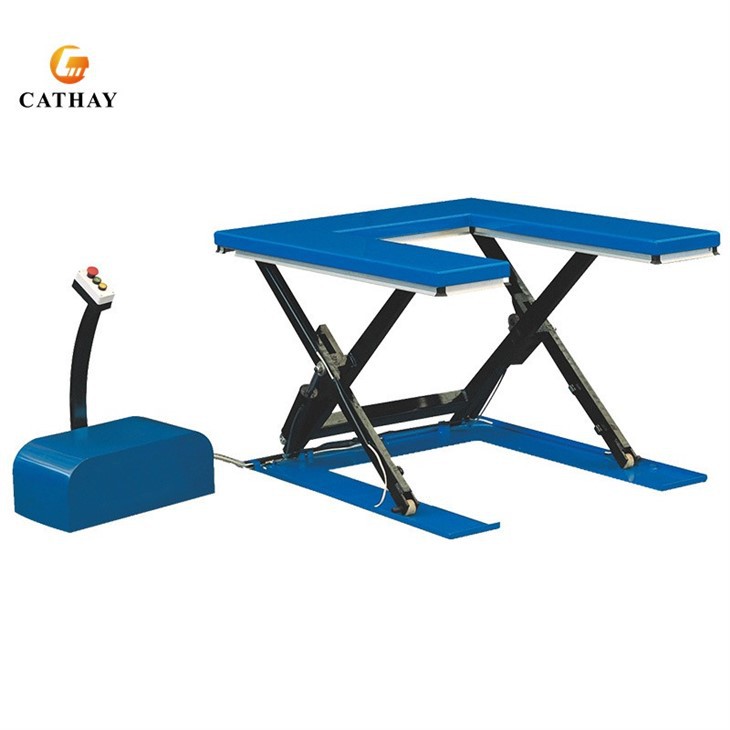

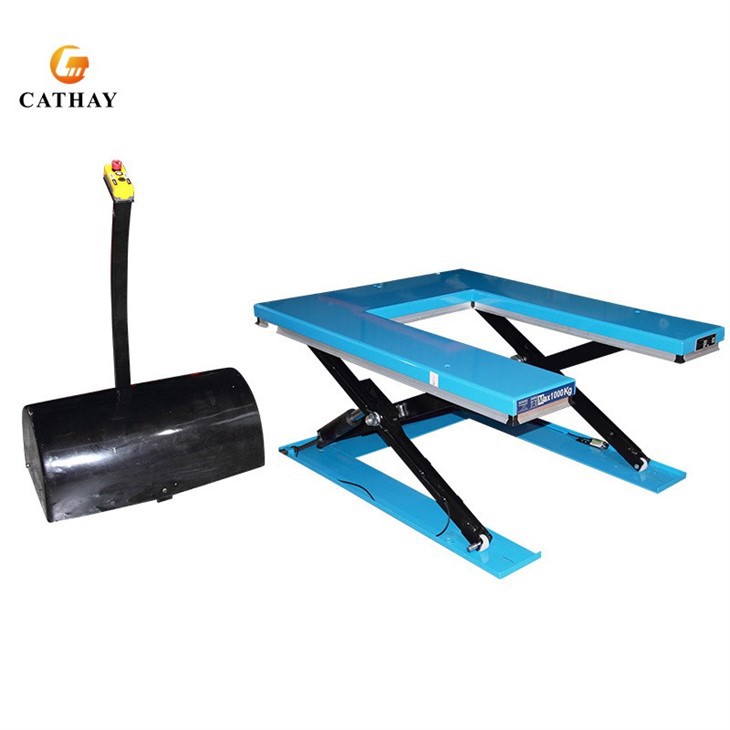

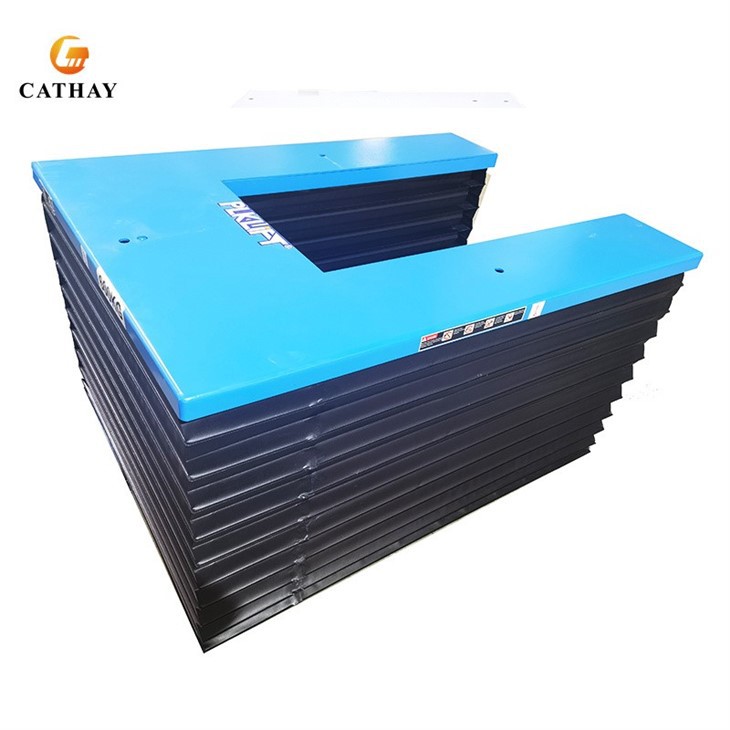

U Shape Pallet Scissor Lift Table

U shape, E shape Pallet Scissor Lift table to the working platform specially designed for loading and unloading goods, the product can be directly installed and used after receiving the goods, especially for pallet trucks, forklifts are convenient for loading and unloading goods.

Send Inquiry

Chat Now

Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of u shape pallet scissor lift table in China. We warmly welcome you to buy discount u shape pallet scissor lift table for sale here from our factory. Quality products and reasonable price are available.

The U-shaped fixed scissor lift table is an improved and optimized lifting device designed for cargo transfer scenarios based on the traditional structure. Its low-position self-lifting system and gentle slope connection mechanism can meet the stable docking requirements of various mobile vehicles. By optimizing the matching accuracy of the scissor mechanism and the support frame, the equipment improves stability while maintaining the compact overall layout characteristics.

Model		LPU600	LPU1000	LPU1500
Load Capacity	kg	600	1000	1500
Platform size LxW	mm	1450x985	1450x1140	1600x1200
Size A	mm	200	280	305
Size B	mm	1080	1080	1150
Size C	mm	580	580	590
Min.Platform Height	mm	85	85	105
Max.Platform Height	mm	870	870	870
Base size LxW	mm	1335x947	1335x947	1335x947
Lifting time	s	25-35	25-35	30-40
Power		380V/50Hz	380V/50Hz	380V/50Hz
Net weight	kg	207	280	380
