Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of movable counter balanced floor crane in China. We warmly welcome you to buy discount movable counter balanced floor crane for sale here from our factory. Quality products and reasonable price are available.

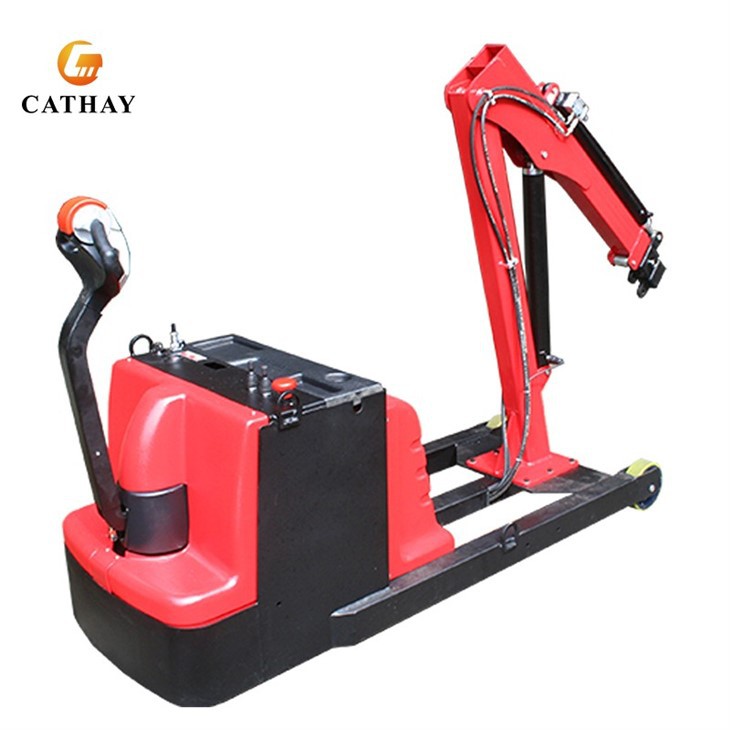

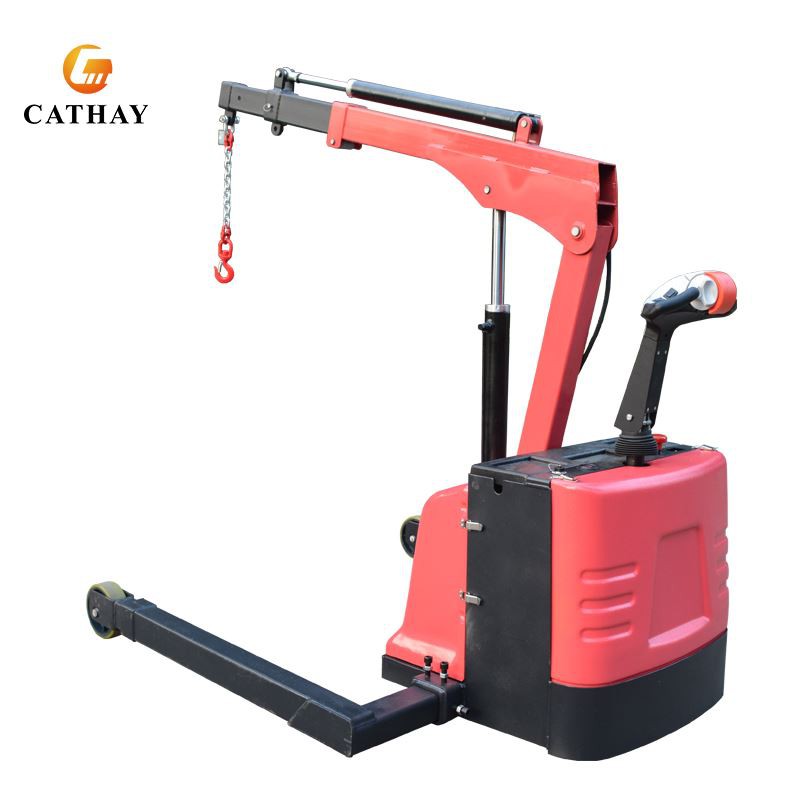

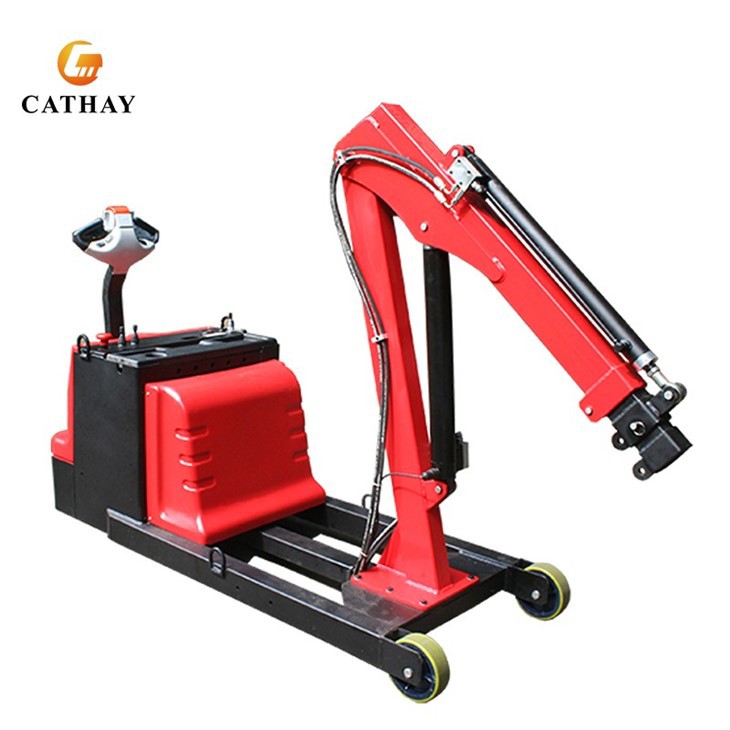

Movable Counter Balanced Floor Crane
The Cathaylift Movable Counter Balanced Floor Crane is available in various capacities, including 700kg, 900kg, and 1200kg, with a maximum lifting height of 3570mm. This crane, available in a range of vibrant colors, will enhance your workspace's aesthetics and boost productivity. Experience precise and effortless load handling with CATHAYLIFT's mobile engine crane, which operates efficiently at the touch of a button. Designed for versatility and ease of use, this floor crane is an ideal solution for all your lifting needs.
|
Model Type |
CSEC-1200 |
CSEC-1200A |
CSEC-700 |
CSEC-900R |
|
Horizontal Reach |
1280+610+610mm |
1280+610+610mm |
1220+610+610mm |
1280mm+610mm+610mm |
|
Load Capacity |
1200kg |
1200kg(1280mm) |
700kg(1220mm) |
900kg(1280mm) |
|
Load Capacity (stage 1) |
600kg(1280~1890mm) |
600kg(1280~1890mm) |
400kg(1220~1830mm) |
450kg(1280~1890mm) |
|
Load Capacity (stage 2) |
300kg(1890~2500mm) |
300kg(1890~2500mm) |
200kg(1890~2440mm) |
250KG(1890~2500mm) |
|
Max Lifting Height |
3570mm |
3540mm |
3560mm |
3180mm |
|
Min Lifting Height |
960mm |
935mm |
950mm |
1410mm |
|
Retracted size(W*L*H) |
1920*760*1600mm |
1865*1490*1570mm |
2595*760*1580mm |
2000*1854*1550mm |
|
Arm Electric Rotation |
/ |
/ |
/ |
120°left/right |
Product Details
Advantage:
Versatile Lifting Capacities: Offers a range of lifting capacities (700kg, 900kg, 1200kg) with a maximum lifting height of 3570mm, suitable for various lifting requirements.
Extended Reach: The telescopic design allows the crane to reach farther objects, enhancing its operational range.
Wide Rotation Angle: Capable of 120 degrees left and right rotation, providing flexibility and precision in positioning loads.
Enhanced Stability: The outrigger design structure effectively solves balance issues, making the chassis more stable and ensuring safer cargo transportation with minimal shaking.
Customizable Power Options: The walking system uses 24V, and the lifting mechanism operates on 380V/50Hz three-phase electricity, with customization options available to meet specific customer needs.
Efficient Battery System: The maintenance-free battery can complete a full day's work when fully charged, with the smart charger automatically cutting off the power and balancing the battery voltage for optimal performance.
Safety Foot Brake: Equipped with a unique foot brake structure that activates during work to prevent violent shaking, maintain balance, and ensure ease of use.
Real Order
