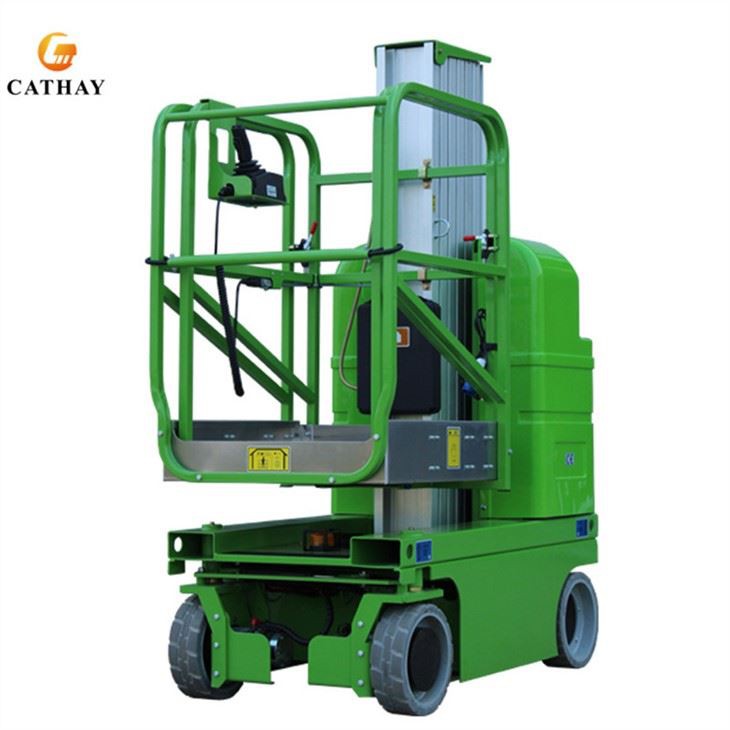

Aluminum Hydraulic Scissor Lift Table

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of aluminum hydraulic scissor lift table in China. We warmly welcome you to buy discount aluminum hydraulic scissor lift table for sale here from our factory. Quality products and reasonable price are available.

CATHAYLIFT aluminum alloy lifting platform adopts high-strength and high-quality aluminum alloy material, which has the advantages of beautiful appearance, small size, light weight, stable lifting, safety and reliability.

When the aluminum alloy lifting platform is working, the hydraulic oil is formed by the vane pump to form a certain pressure, and enters the lower end of the hydraulic cylinder through the oil filter, explosion-proof electromagnetic reversing valve, throttle valve, hydraulic control check valve, and balance valve, so that the pressure of the hydraulic cylinder The piston moves upwards to lift the heavy object, and the oil returned from the upper end of the hydraulic cylinder returns to the oil tank through the explosion-proof electromagnetic reversing valve. The rated pressure is adjusted through the overflow valve, and the reading value of the pressure gauge is observed through the pressure gauge.

The piston of the hydraulic cylinder moves downward (that is, the weight falls). The hydraulic oil enters the upper end of the hydraulic cylinder through the explosion-proof electromagnetic directional valve, and the oil returned from the lower end of the hydraulic cylinder returns to the oil tank through the balance valve, hydraulic control check valve, throttle valve, and explosion-proof electromagnetic directional valve. In order to make the weight drop smoothly and the brake safe and reliable, a balance valve is installed on the oil return line to balance the circuit and maintain the pressure so that the descending speed is not affected by the weight. The flow rate is adjusted by the throttle valve to control the lifting speed. In order to make the brake safe and reliable, and prevent accidents, a hydraulic control check valve, that is, a hydraulic lock, is added to ensure that it can lock itself safely when the hydraulic pipeline bursts accidentally. An overload sound-activated alarm is installed to distinguish overload or equipment failure.

Movable control panel on the platform:

American CURTIS steering handles, with low failure rate and streamlining, good handling, more flexible steering and no wheel slip.

Bottom control panel:

Ground control system, which can be operated from the ground to work.

Tilt sensor, buzzer, Strobe light:



When working, the warning light and buzzer light will continue to work. In order to prevent danger, the tilt sensor automatically detects whether the road meets the working requirements. When the raised height is greater than two meters and the road angle is greater than two degrees the machine will automatically power off.

Hydraulic steering, electric drive 4×2 Drive:



Wheels with silent non-marking rubber tires，High precision hydraulic steering, electric drive, low error rate and high sensitivity.

Battery charger and power switch:



Red main power switch,The blue is the battery charger socket, the charger is built-in.
