Plate Suction And Installation Machine

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of plate suction and installation machine in China. We warmly welcome you to buy discount plate suction and installation machine for sale here from our factory. Quality products and reasonable price are available.

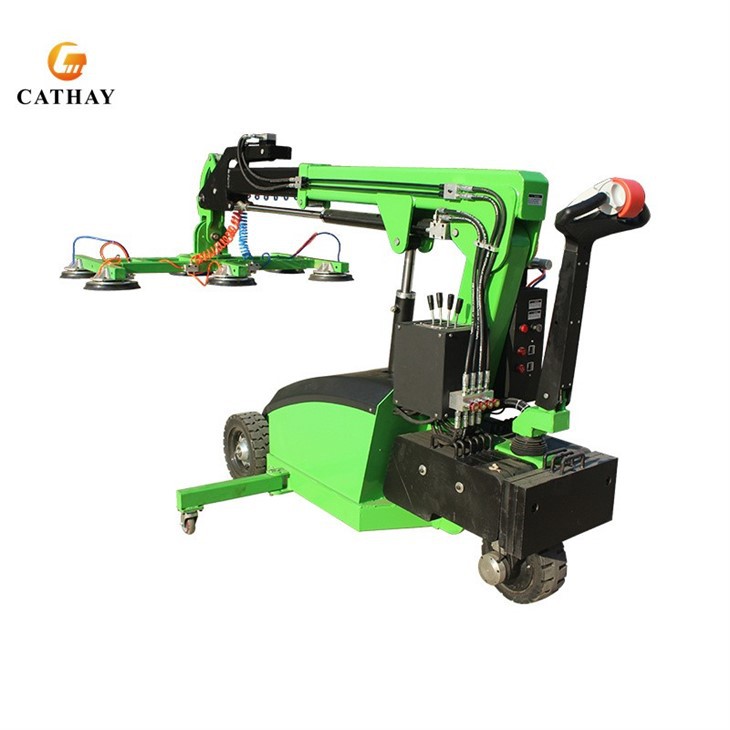

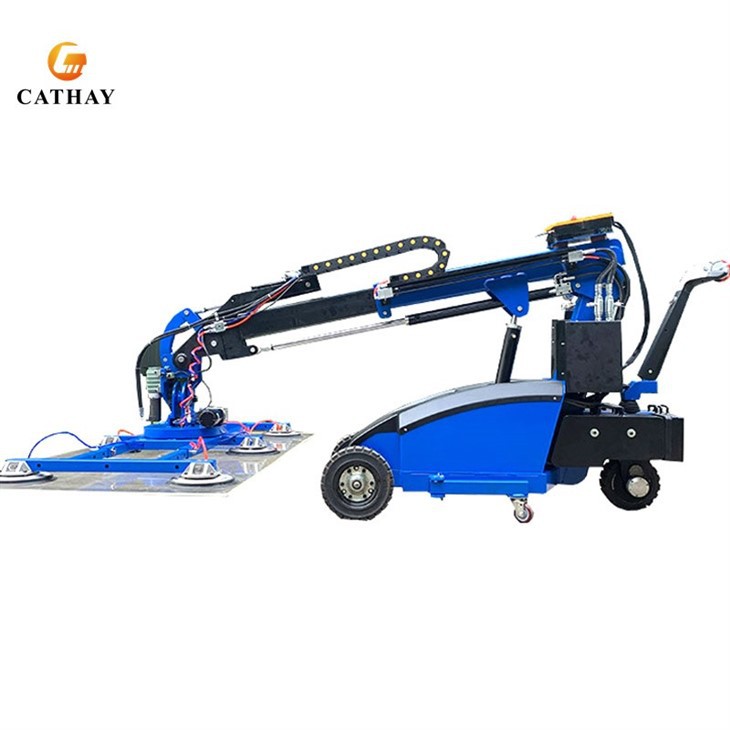

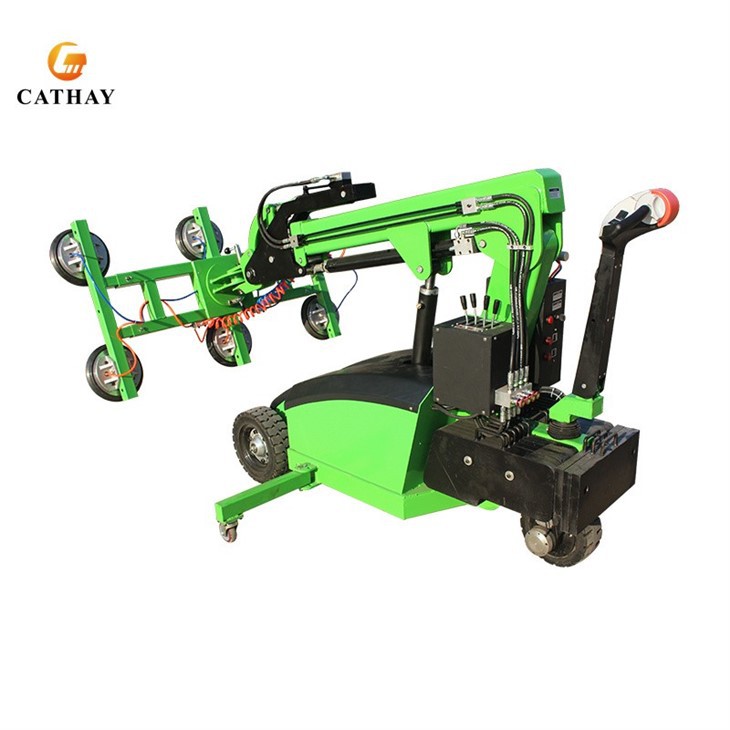

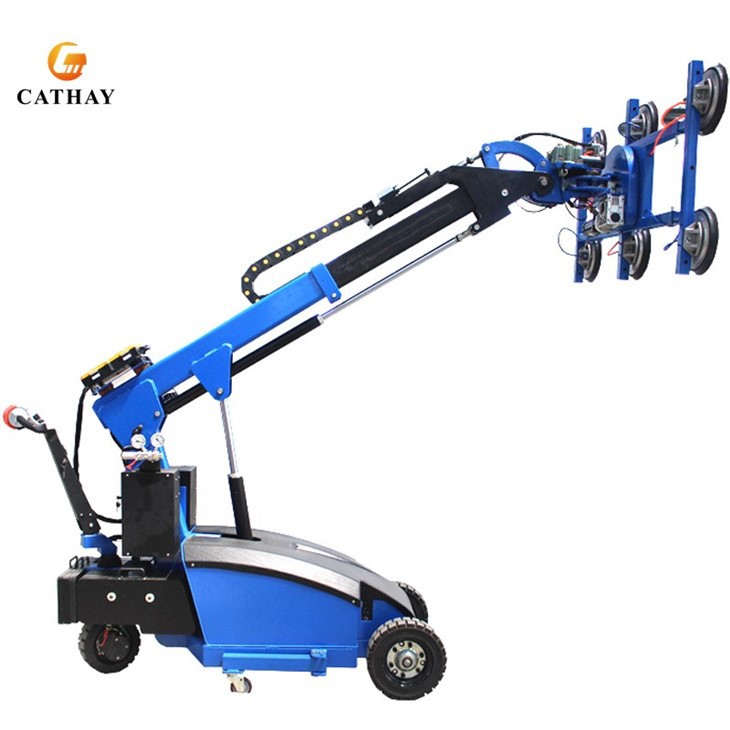

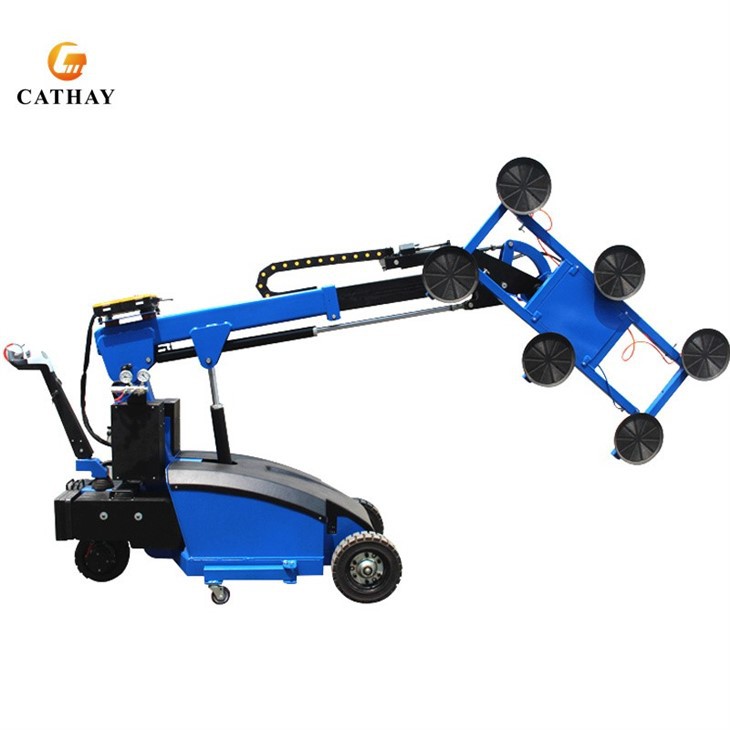

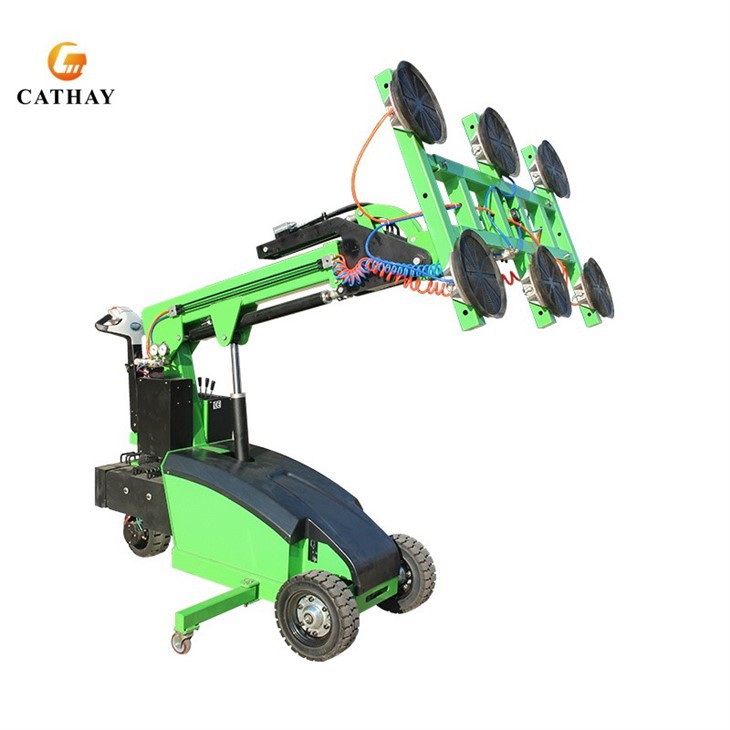

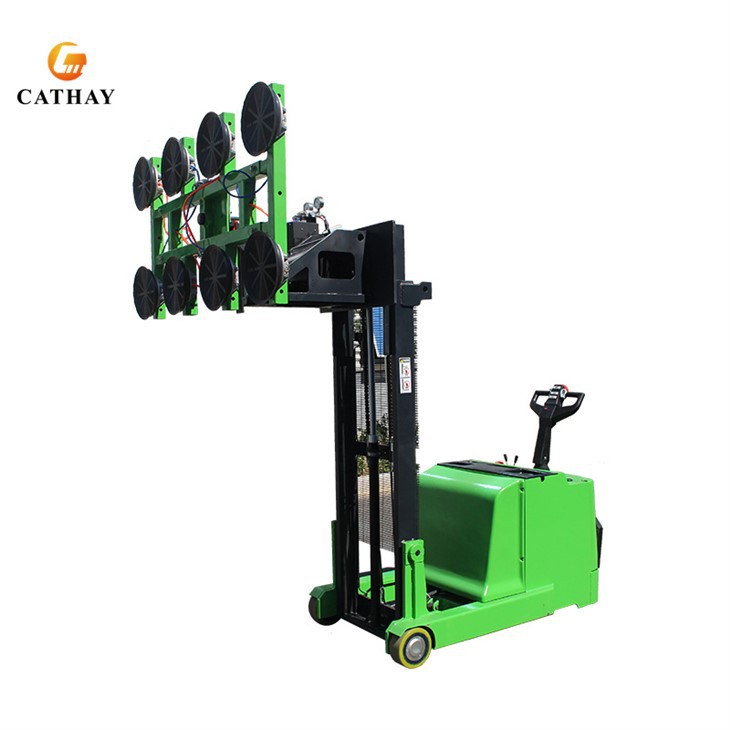

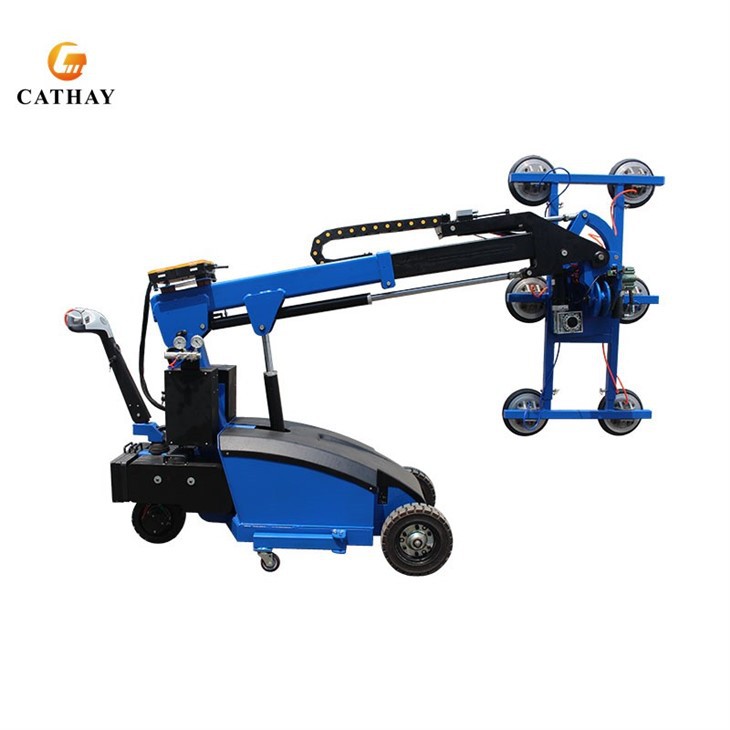

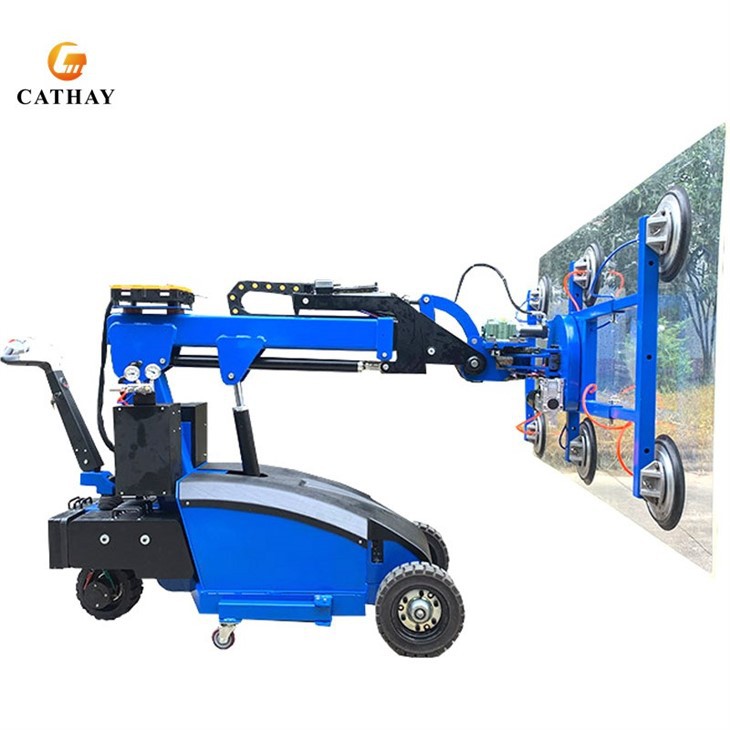

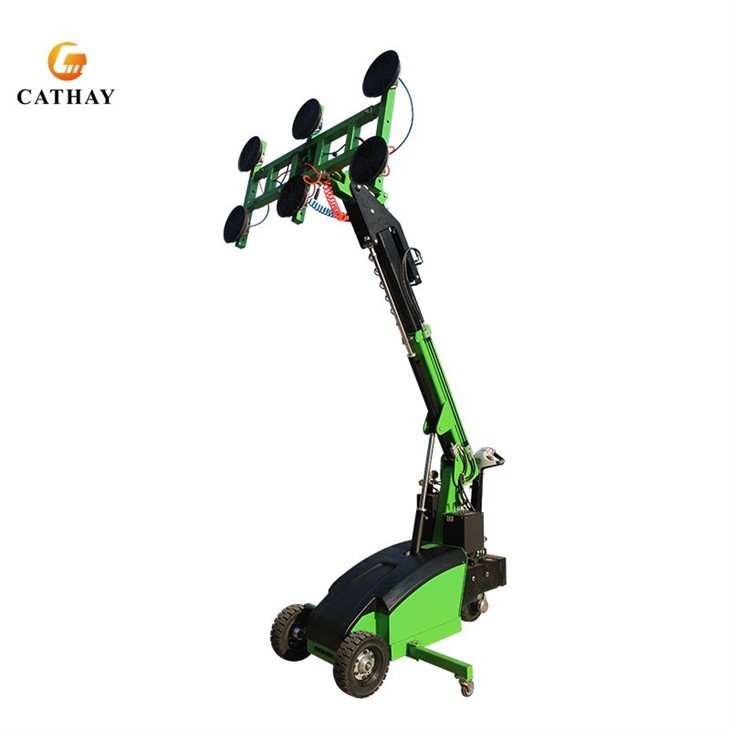

The CATHAYLIFT electric plate suction cup car is easy to operate. The vacuum suction cup feeding system equipped with the small mobile lifting glass car can complete the vacuum adsorption of metal plates such as iron plates, steel plates, aluminum plates, stainless steel, etc. The suction cup is attached to the surface of the metal plate with the help of the vacuum force formed by the electric vacuum pump to establish a strong connection between the suction cup and the plate. The adsorbed object can be tilted, rotated and moved to any target point to achieve non-damage heavy material transfer. Equipped with a vacuum accumulator and a sound prompt device, it has excellent controllability and process stability. The position of the suction cup and the crossbeam can be freely adjusted to meet the adsorption requirements of plates of different specifications. The energy-saving control vacuum generating device is adopted to reduce operating expenses. The CATHAYLIFT-XC model supports continuous full-circle rotation and electrically controls gas suction and exhaust. It is used for large-scale glass handling in workshops and heavy-duty installation projects of outdoor glass windows, and has left and right and horizontal adjustment functions.

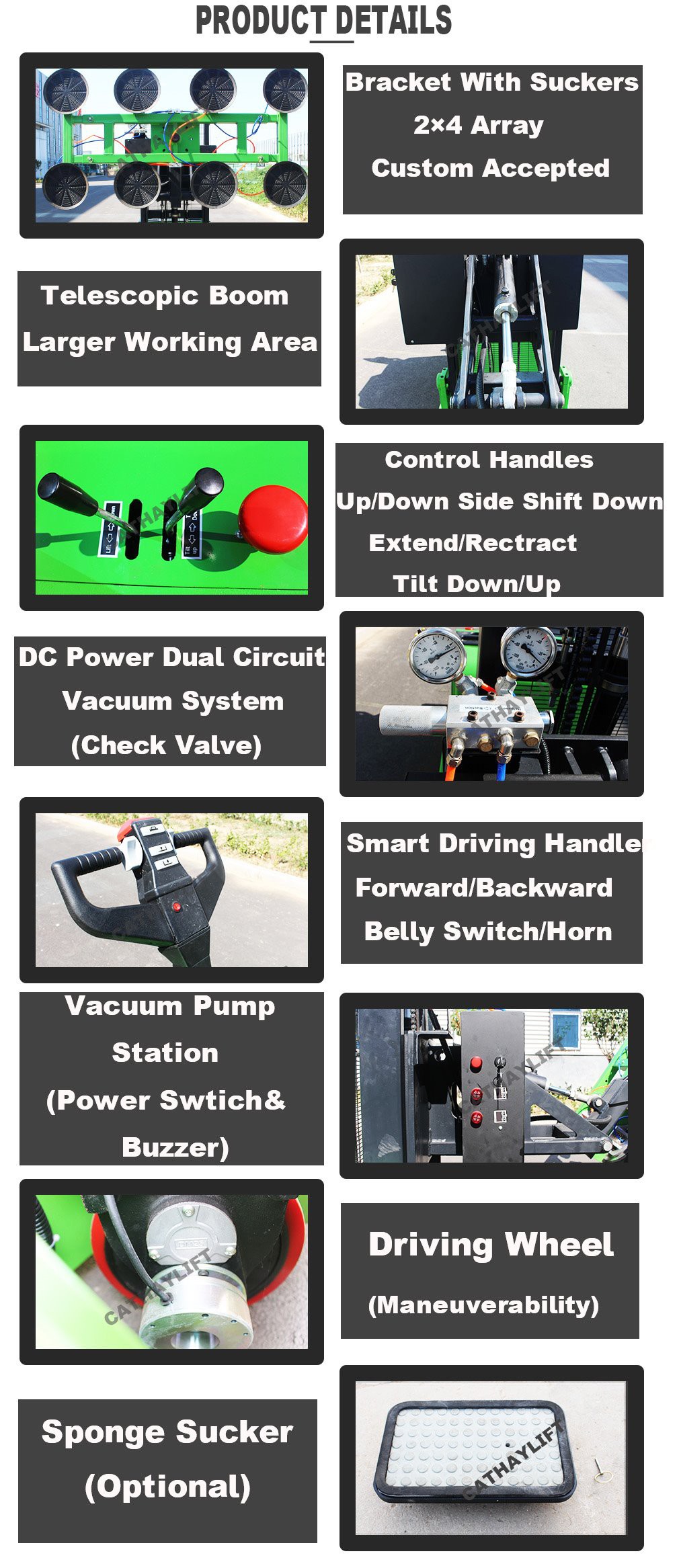

Working principle: The handle carried by the suction cup car manages the vehicle's advance and retreat, battery power on and off, and horn functions. The vehicle's advance and retreat movements are realized by the drive motor through the transmission box. The braking system adopts electromagnetic type, and the brake pads apply force directly. The drive motor triggers the brake when the joystick is in the limit position, and the joystick is in the middle to allow the vehicle to move forward and backward. Pushing the joystick up activates the pump station, and the pressure oil drives the hydraulic cylinder to lift the boom; pushing it down activates the pump station, and the hydraulic cylinder returns oil to lower the boom; pushing forward activates the pump station, and the pressure oil drives the hydraulic cylinder to extend the boom; pulling back activates the pump station, and the hydraulic cylinder returns oil to retract the boom.

● Imported silicone suction cup, three-layer sealing ring configuration, excellent sealing, soft and environmentally friendly, odorless, easy to clean,           long   life, suitable for glass and ceramic industries. High wear-resistant nitrile rubber suction cup is also an option.
● Dual control system, barometer from Japan, air pump imported from Europe, stable quality, excellent safety.
● Outdoor wear-resistant drive wheel, equipped with high-power motor, powerful. The front wheel is sturdy and wear-resistant, suitable for outdoor           working conditions.
● Multi-layer rocker arm structure is conducive to electric flap operation.
● Lateral support leg design effectively enhances the stability of the vehicle body and ensures operation safety.
