Glass Suction Mobile Installation Machine

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of glass suction mobile installation machine in China. We warmly welcome you to buy discount glass suction mobile installation machine for sale here from our factory. Quality products and reasonable price are available.

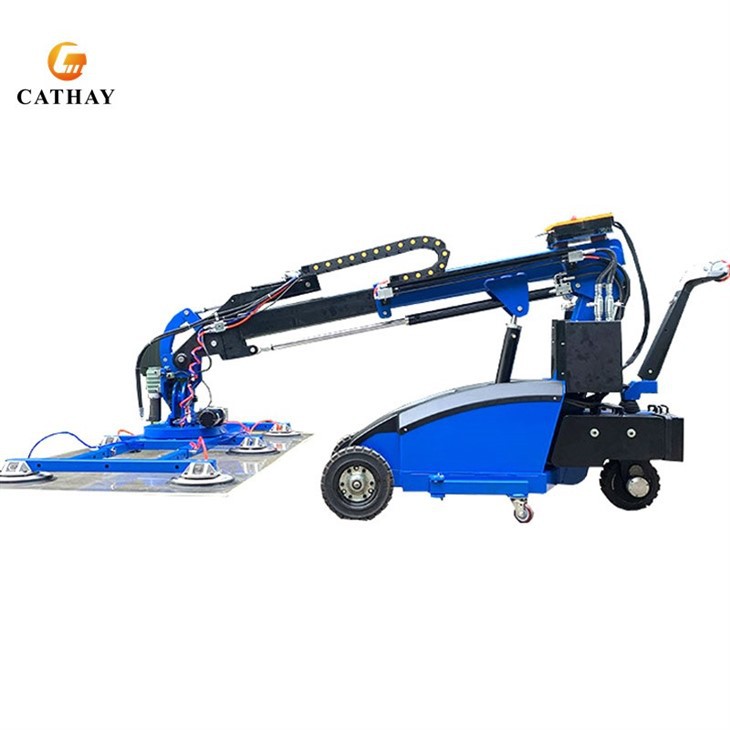

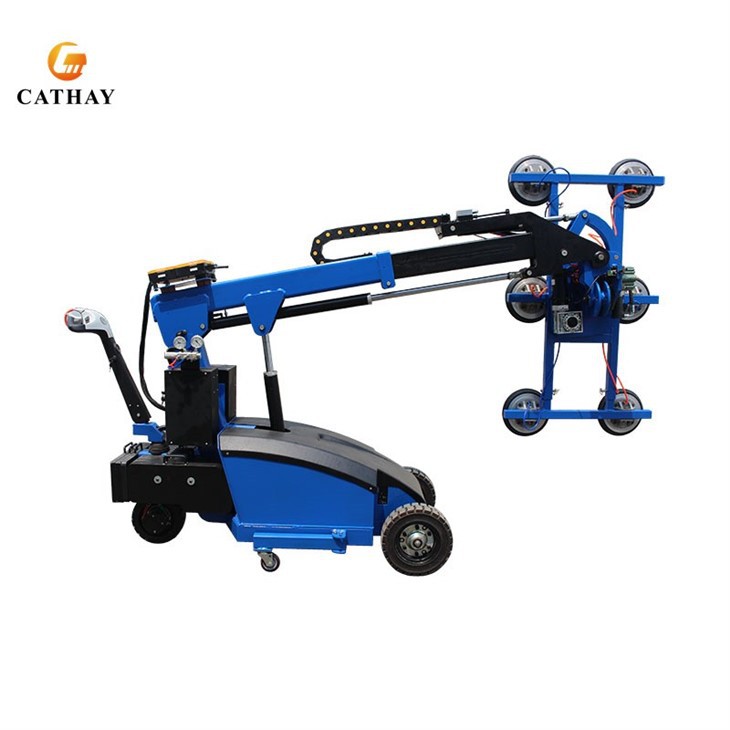

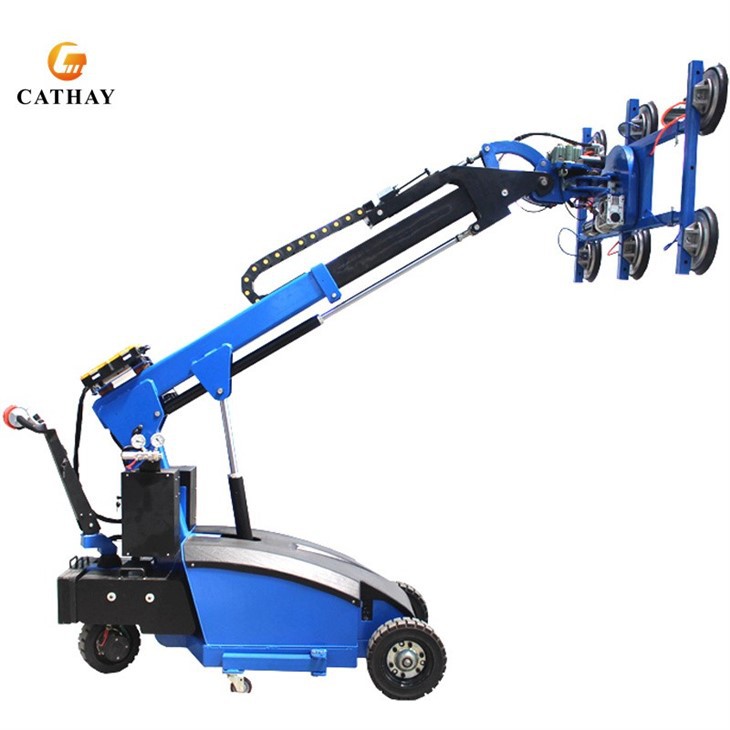

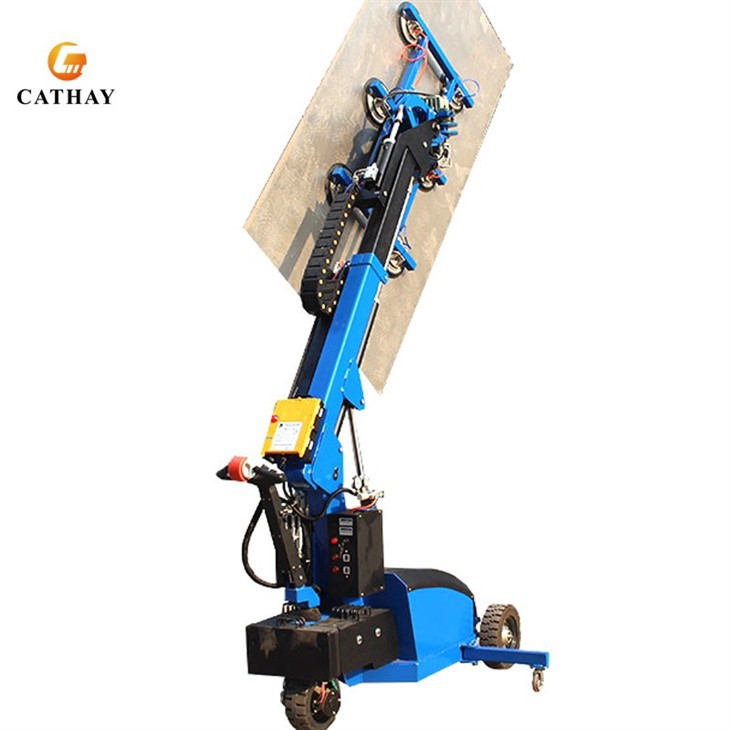

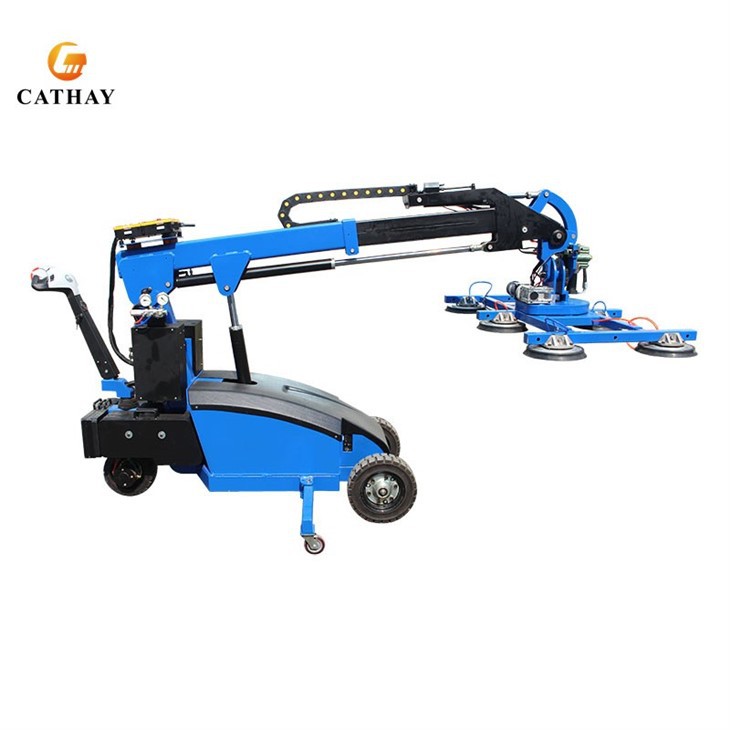

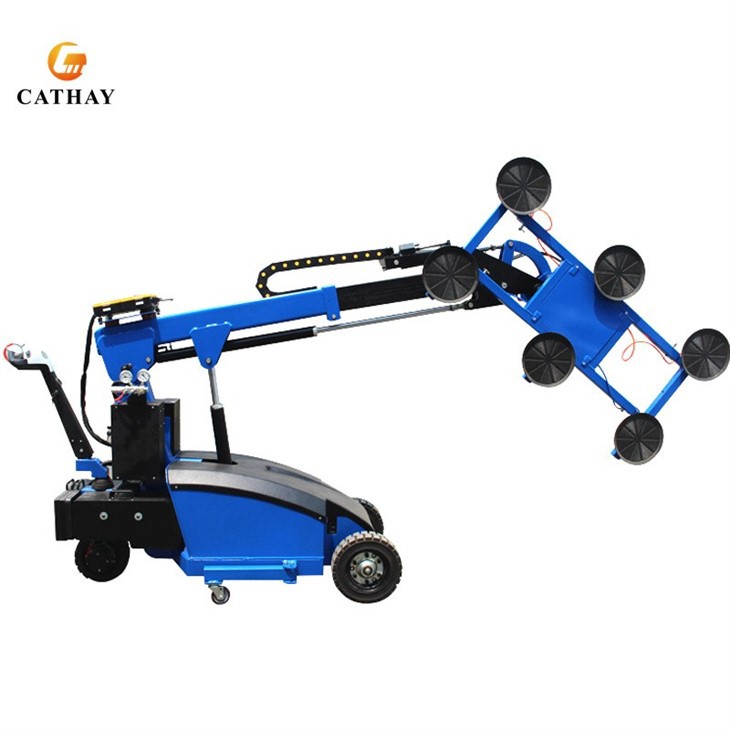

CATHAYLIFT glass lift is specially designed for handling and lifting of flat materials such as glass, steel plate, marble, etc. The equipment provides a variety of suction cup configurations (such as four suction cups, six suction cups, eight suction cups, etc.), and the suction cups have 360-degree bidirectional flipping capabilities. The equipment adopts a double-row design, and the suction cups are arranged in a finished product shape, which can effectively control the lifting and flipping of flat goods. During operation, by controlling the suction cups, the flipped flat plate can be stably adsorbed and lifted. The equipment integrates multiple functions: electric forward and backward movement, electric hydraulic lifting, suction cup adsorption safety assurance system and electric flipping. Among them, the suction cup safety assurance system ensures that when some suction cups fail, the remaining suction cups can still reliably adsorb the goods to ensure a smooth and safe lifting and flipping process. The whole machine has a compact structure and is easy to enter and exit the elevator space. The control design is exquisite, and the multi-function buttons are concentrated on a single control handle. It is convenient and efficient to move, adopts electric travel and is equipped with electronic stepless speed regulation, and runs smoothly; the high-power drive motor provides safety for glass handling. Charging is simple and fast, and it is equipped with an intelligent charger, which is convenient to replenish power for the equipment at any time.

• Integrated control system, one-button vertical and horizontal automatic positioning.
• Adopting DC24V actuator, lifting, extension and tilting actions are reliable and efficient. With autonomous vacuum adsorption capability.
• High cost-effectiveness, labor saving, and optimized working environment.
• The surface of CATHAYLIFT vacuum lifting device has been reinforced and has excellent anti-corrosion performance.
• High-performance pump station ensures smooth lifting process.
• Equipped with heavy-duty cylinder and safety valve group, it can prevent the mechanism from accidentally falling when the hose breaks accidentally.
• Integrated overload protection (pressure reducing valve) and descending speed adjustment (flow valve).
• Simple structure, easy operation and maintenance.
• Complies with ANSI/ASME and EN1570 safety standards

• Explosion-proof valve: prevents hydraulic pipeline from bursting and ensures pipeline safety.
• Overflow valve: limits the maximum system pressure and realizes pressure regulation.
• Check valve: prevents hydraulic oil from flowing in reverse.
• Emergency descent valve: in case of emergency power failure, manually lower the boom.
• Dual-circuit vacuum system: improves system reliability.
• Emergency stop button: cuts off power immediately.
• Two support legs: enhances operation stability.
